Jul 5, 2025 - 10:46:19 AM
likes this

6291 posts since 12/20/2005

.22 Hornet has always interested me, but I have never had one. Looks like you are getting your money’s worth and then some.
Enjoy !

Jul 5, 2025 - 3:24:49 PM

45339 posts since 3/5/2008

I have made a coupl'ah k- hornets too..

I rather like that case n chamber..
You fire form a factory round in it.. n when you reload the k- hornet ya get 2 to 3 hundred fps more..

Edited by - STUD figmo Al on 07/05/2025 15:26:16

Jul 6, 2025 - 6:24:30 AM

45339 posts since 3/5/2008

Jul 6, 2025 - 7:09:58 AM
likes this

6291 posts since 12/20/2005

It’s pretty cool you seem to favor small bore, classic rifles. Back in the days, there were some fine rifles chambered in .22 Hornet.
I went to a gun show last weekend, did not see one .22 Hornet.
I did see acres and acres of 6.5 Creedmore. Mostly on black guns. Obviously lots of folks like that. And, good for them.
Personally, I have a preference for medium bore rifles.
My favorite is a 9.3x62. I have 2. If you do any reading on that cartridge or watch a YouTube video on it, it has a very interesting history.

Jul 6, 2025 - 7:42:20 AM
likes this

6291 posts since 12/20/2005

This is a stock I am currently building for one of my 9.3’s. It is being made for a large ring CZ 98 Mauser.
Ballistic of a 9.3x62 comes close to a.375 HH.
But the rifle is about the size of a .243
Recoil is considerable.
This is claro walnut. I’m using a mixture of tung oil and urethane, commercially made by Brownell’s.


Jul 6, 2025 - 8:42:59 AM

45339 posts since 3/5/2008

Nice..!

You seem to have a better hand at wood than i do... :0)

Jul 6, 2025 - 8:47:37 AM

45339 posts since 3/5/2008

Yes..I like .22 to 8mm...
.257 n 6mm favored...

I buy what I can find cheap n work with that..
Getting harder to do now...

Jul 6, 2025 - 9:08:50 AM

45339 posts since 3/5/2008

Hobby gunsmith kinks... make things interesting...
As of late..I found an old project i put together.. a barrel for a 219 savage..in 25-35 win..
Found a 25-35 AI chamber reamer on ebay..made an offer on it n now..it is mine..
I have an older 219 savage reciver.. from apx 1938..
Clear to see..it has had ..alot..of history..
It came with a barrel in 22 hornet...
Someone tried to put a scope mount on it..
Drilled right into the chamber.. :0(
Studying i..I figgered out ..just how that came about..
The person doing it must of only had a starting tap..
N attempted to over drill to cut threads..n..oops... (Not..Me... ! ;0)..)

Long story short..I was able to repair the barrel..it is now a 22-250 chamber..
Shoots super good...
But the extractor is weak for that..safe to shoot but dose not eject full power loads..

Also...that barrel..is the only barrel that fits that receiver with the exception of one other barrel I made years ago for that receiver.

219 n 220 barrels should from the factory be interchangeable..

But not so with this receiver..
Being first year of production..I just figgered that was the way it was..n never gave it a second thought..
Till now..
Turns out..

The hinge pin...had been replaced at some time ago in its life..to a larger one...

N..so..now I know..
But..
In the resurrection of the old project..
I fit the barrel to this old reciver..
To be continued.....


Edited by - STUD figmo Al on 07/06/2025 09:11:46

Jul 6, 2025 - 9:27:57 AM
likes this

45339 posts since 3/5/2008

Internet been eating me posts while typing.. :0[

In the resurrection of the old found project..I chose to fit the barrel to that reciver..
N...
By happen chance...after getting it all done n fit nicely...
A major internal part broke in the old action... :0(
Fyi...
A 219 savage reciver..
Is..very busy on the inside...not fun to work on...
Lotta compressed springs n things...

Sooo...I opted to go to another old reciver I had on hand...
No soap...

The freshly cut barrel..will only fit the reciver i cut it to...
Which lead me to the discovery....
Some time in its past..someone..replaced the main hinge pin..to a larger one..
I dunno why...
But tis why other barrels will not fit..
Unless modified..

So...now..I have no choice but to fix the reciver or replace the parts...
I did find old replacement parts n they are commin..
N..I did get what I needed to get out of the old reciver...

But gettin them...back in...
Oi-vay.... :0/


Projects...projects..projects.... :0/

We'll see how this goes... ;0)

Jul 6, 2025 - 9:38:37 AM

45339 posts since 3/5/2008

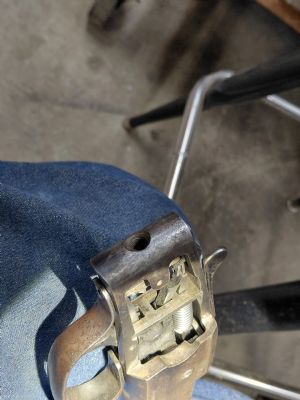

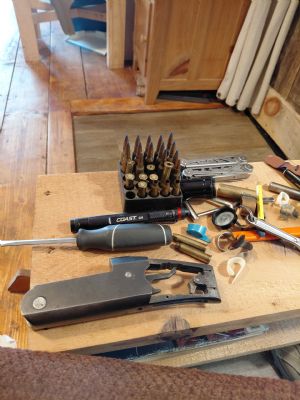

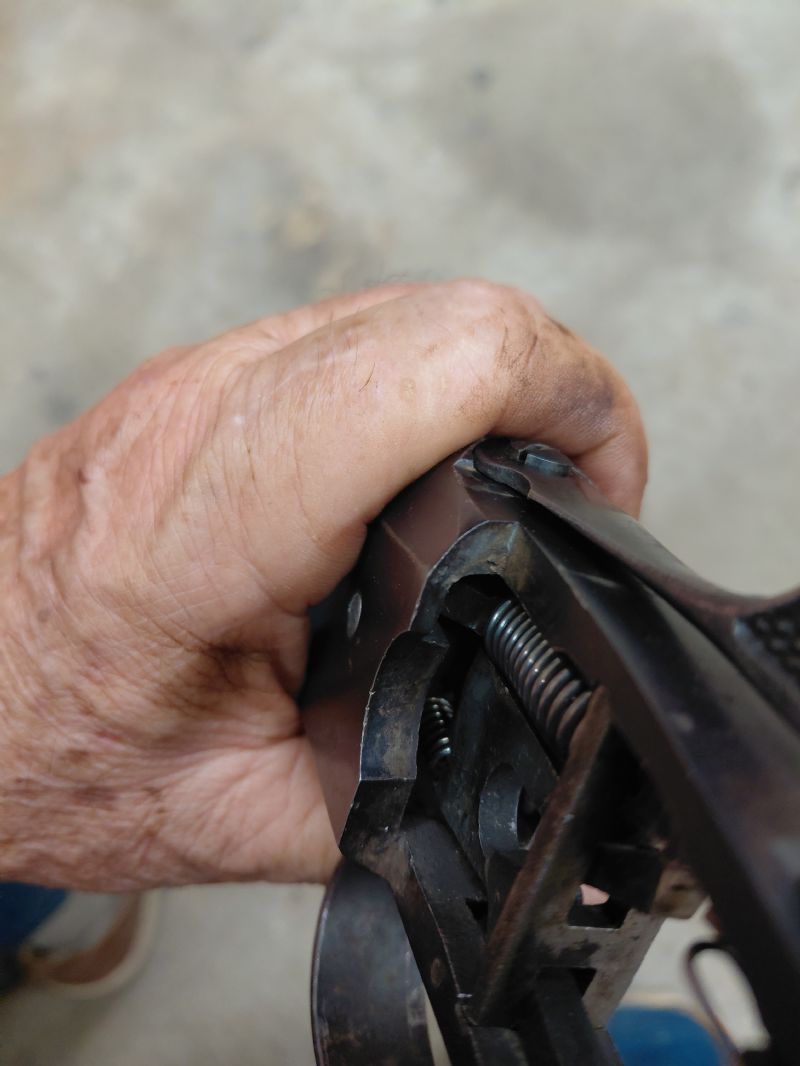

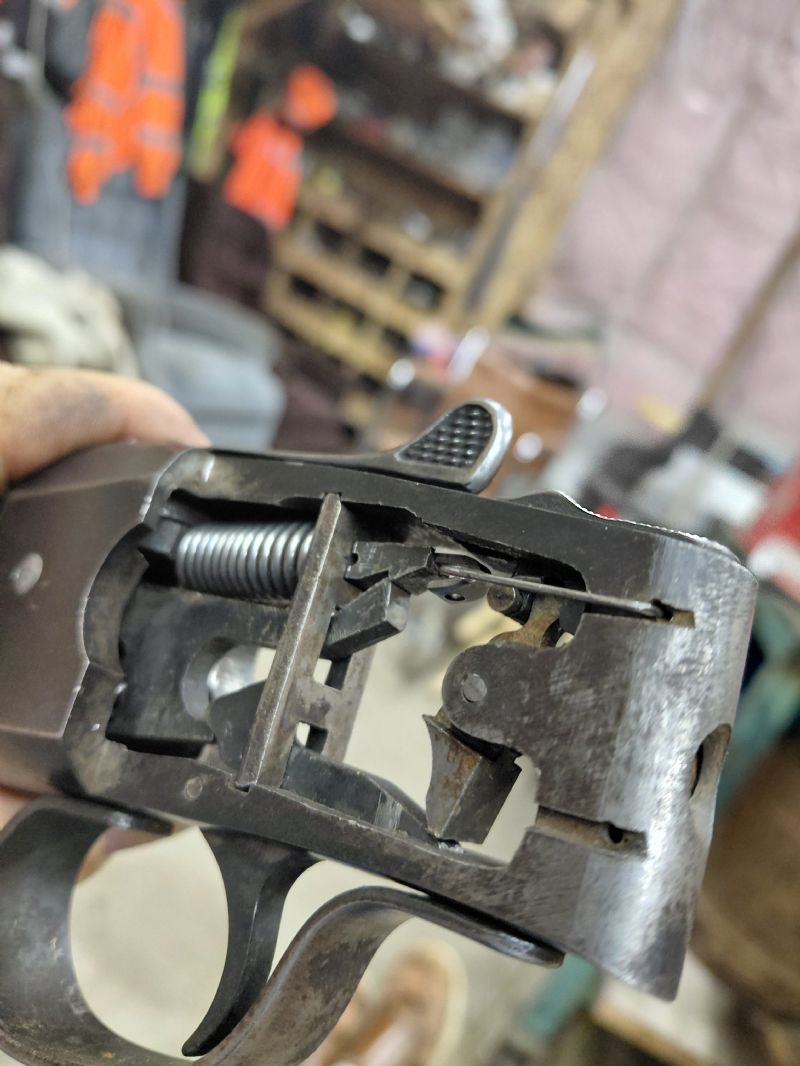

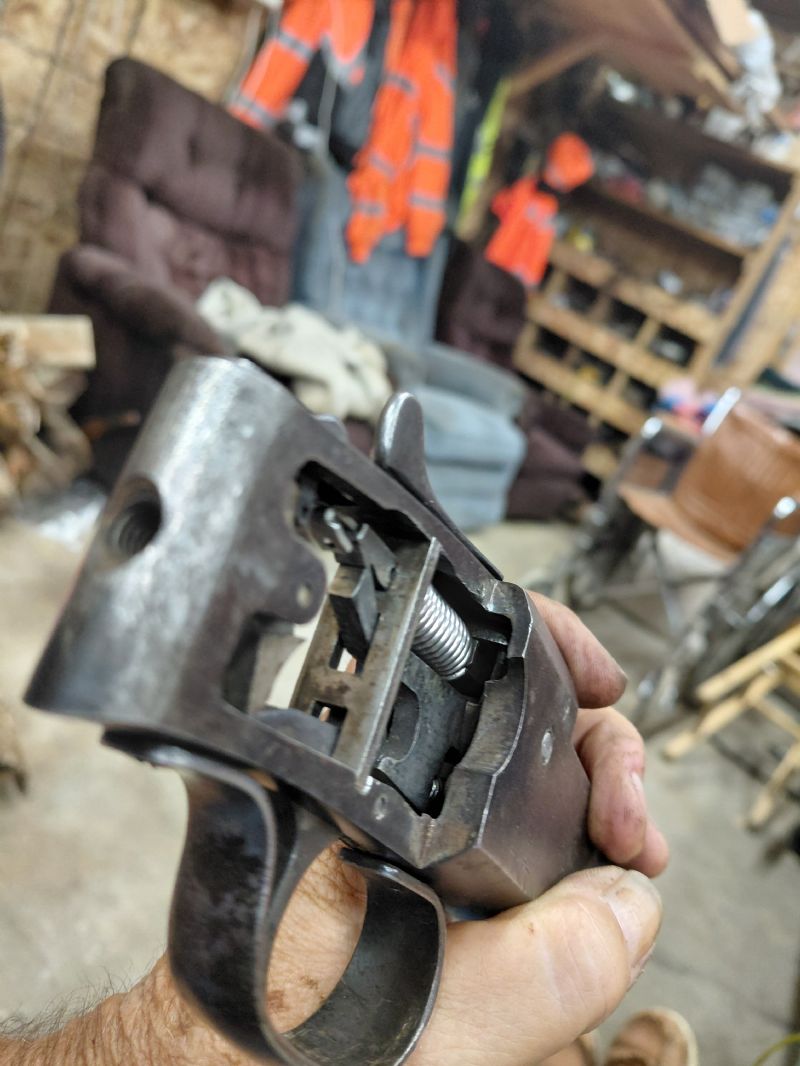

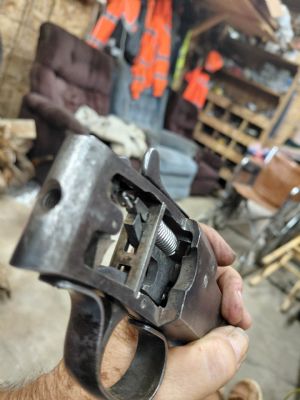

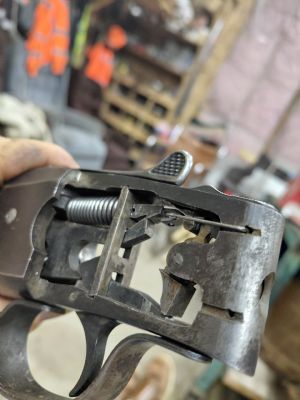

The reciver in question...




Jul 9, 2025 - 2:22:34 PM

45339 posts since 3/5/2008

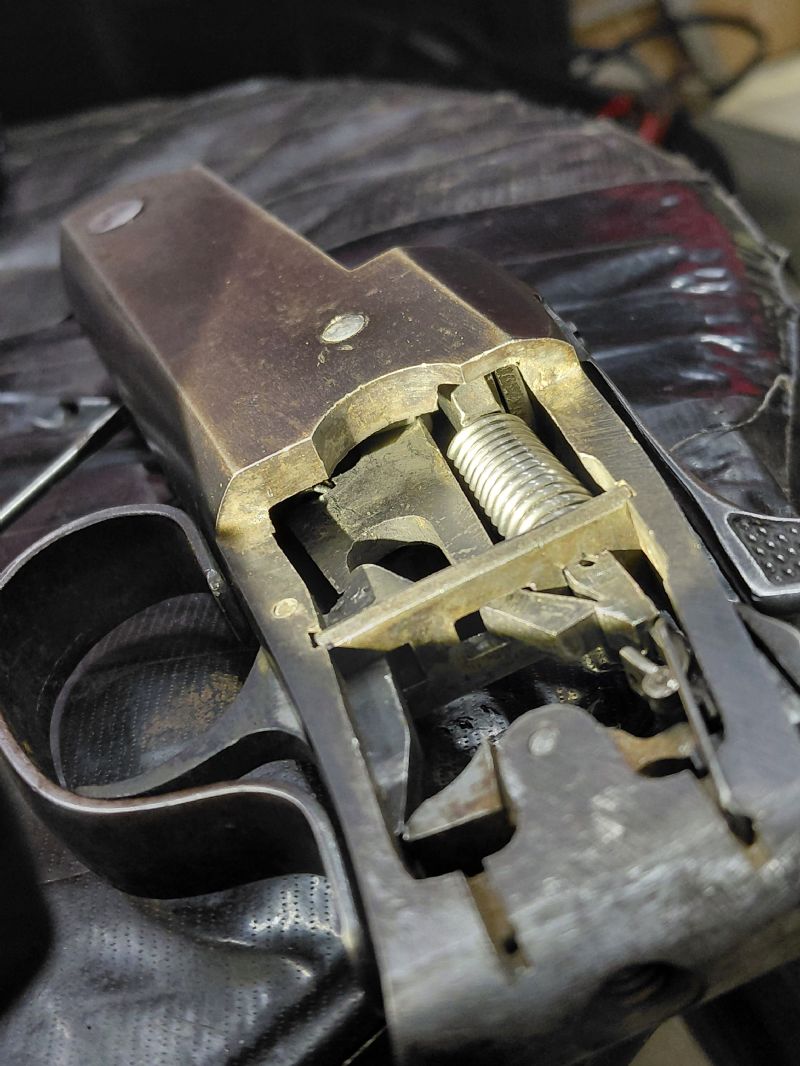

Well it is together..
Waiting on one spring that is commin in the mail...
Twas a ..buggah....
But..now I can continue me project.. :0)








Jul 10, 2025 - 3:26:47 PM

45339 posts since 3/5/2008

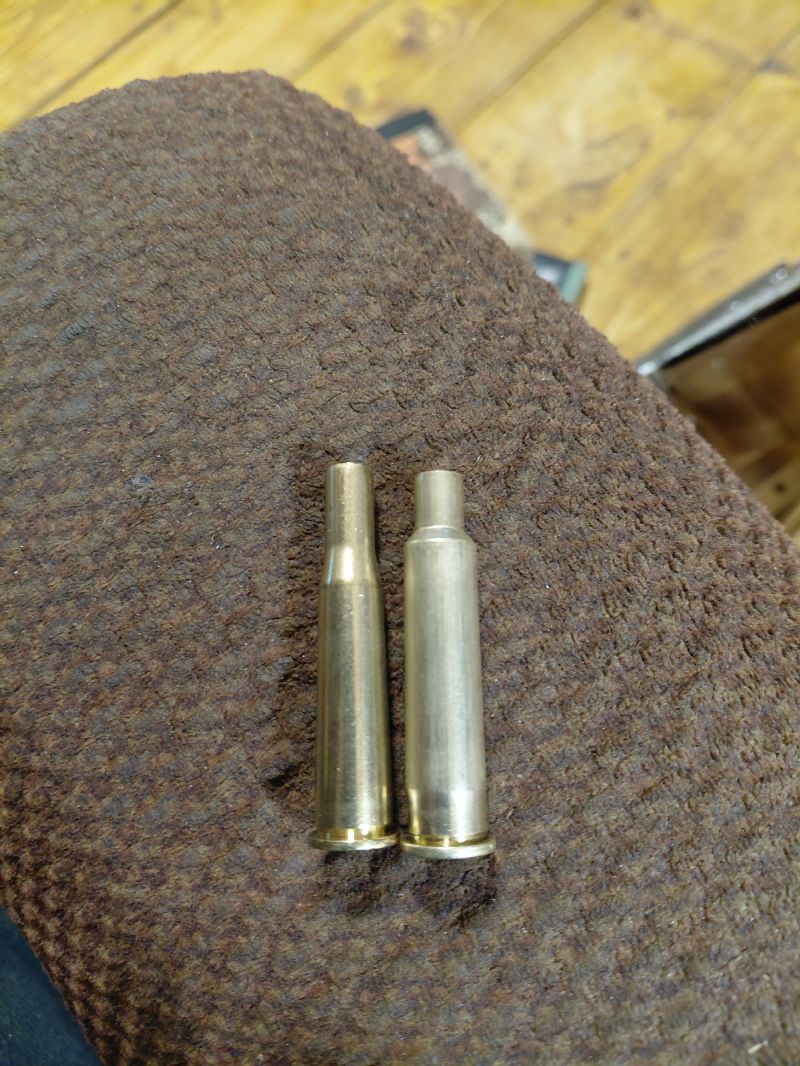

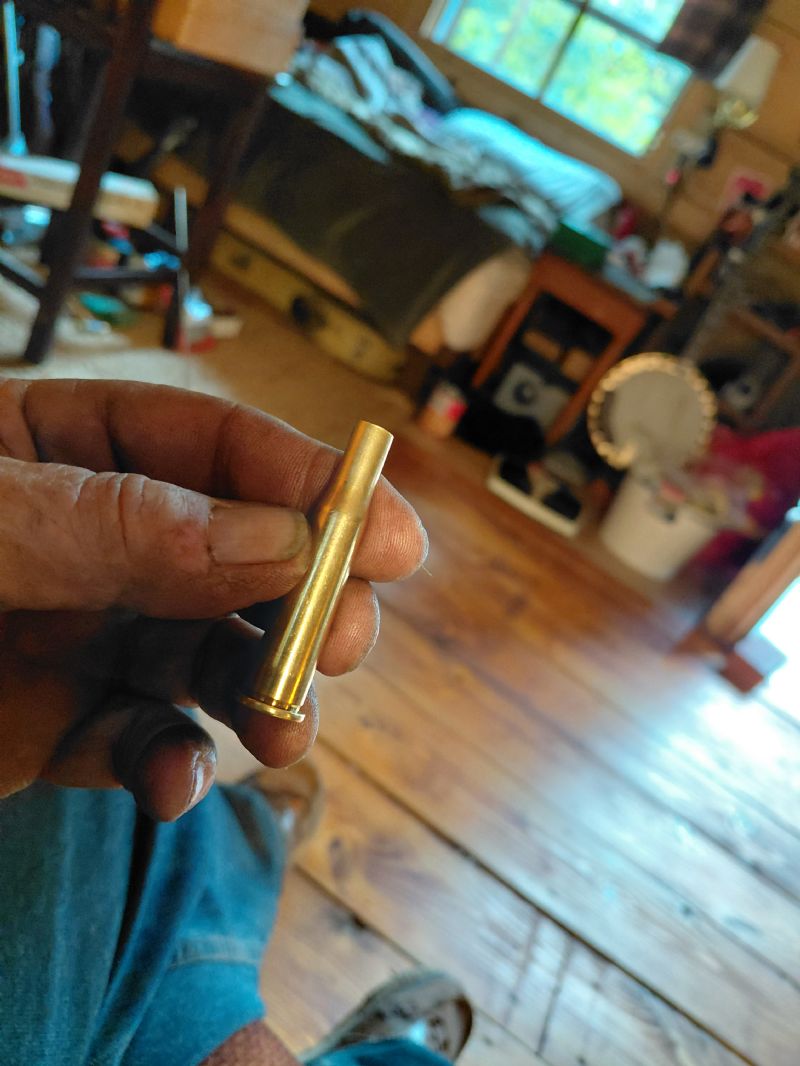

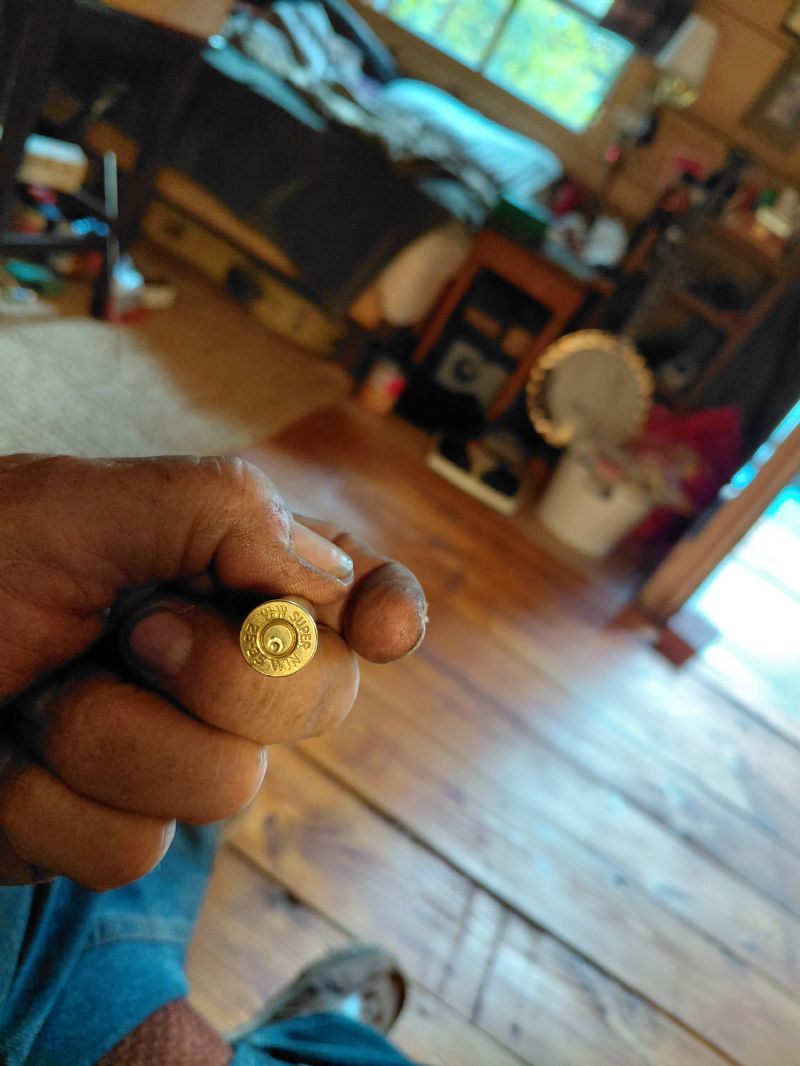

Here is a 25-35 win next to a fire formed 25-35 ai...
2650 fps with a 100 grain boolit...


From what I have read most.."experts"...
Say this can not be ..done...

Guess..I'll just stick to being a...
Layman...
As it works for them...

A little fore thought.. in the reaming of the chamber..n..in the fire forming load... n..
Viola.... :0)
Works..
Btw...it is a net gain of 300 fps..from a factory 25-35 win load...




Jul 24, 2025 - 3:41:14 PM

45339 posts since 3/5/2008

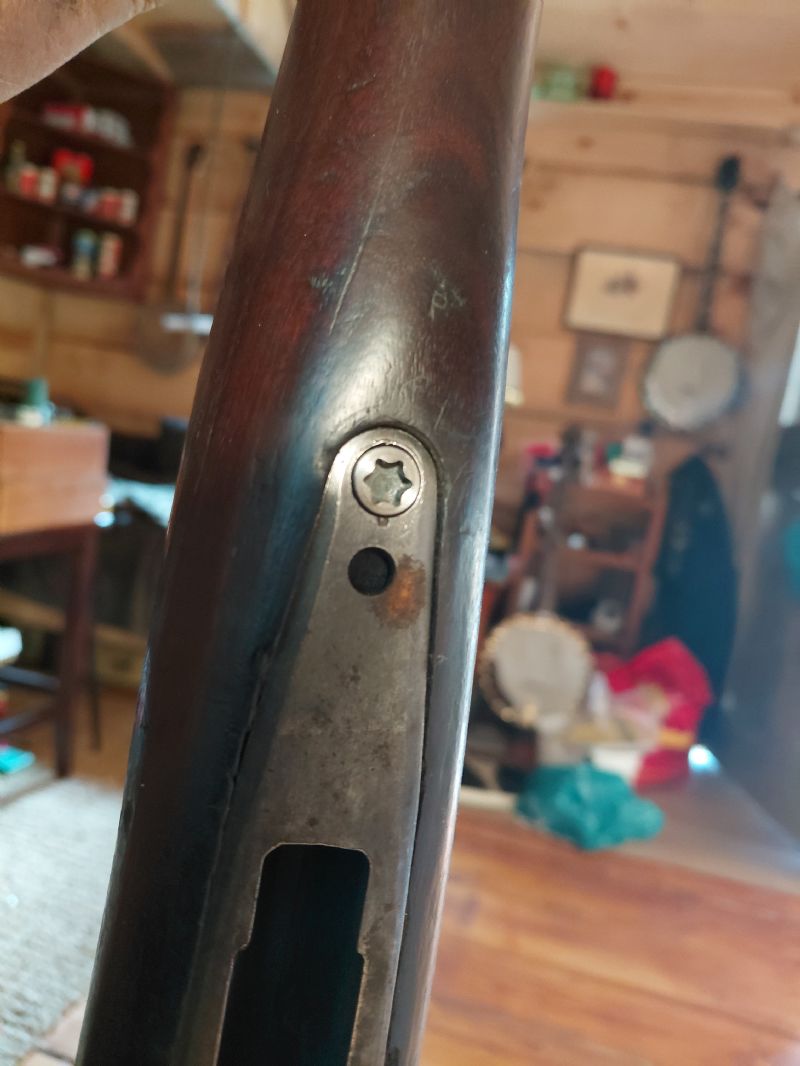

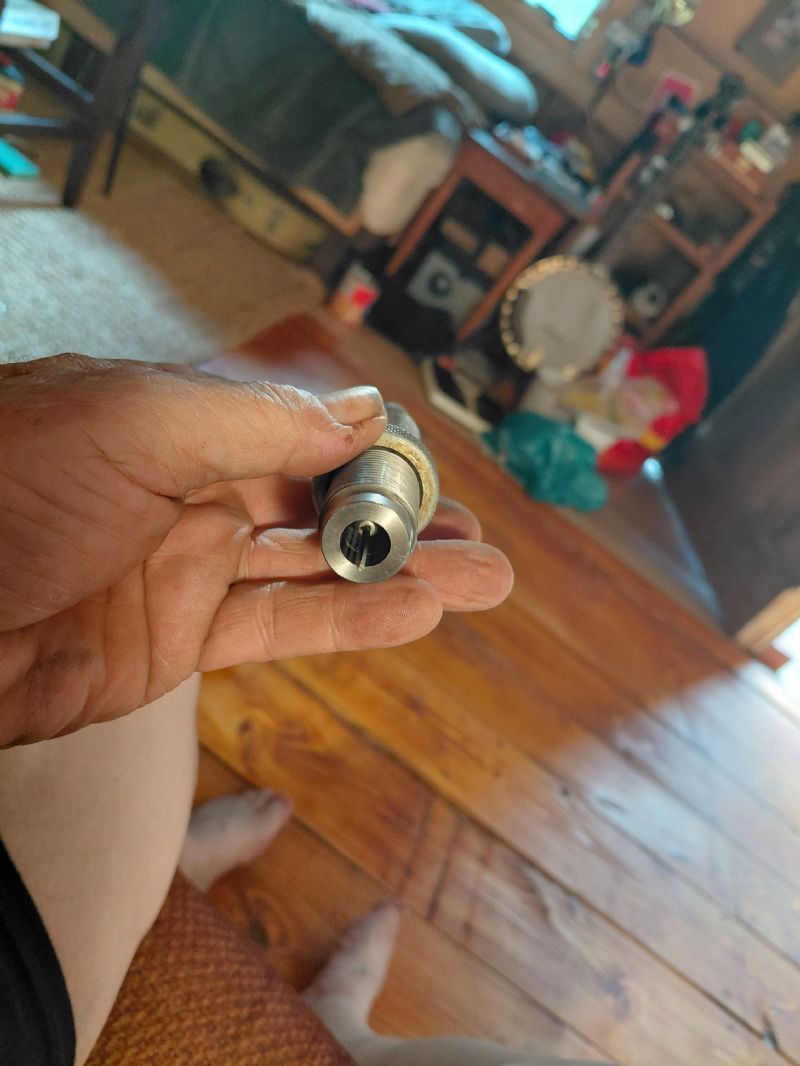

Today's project make a stock screw for a rifle..

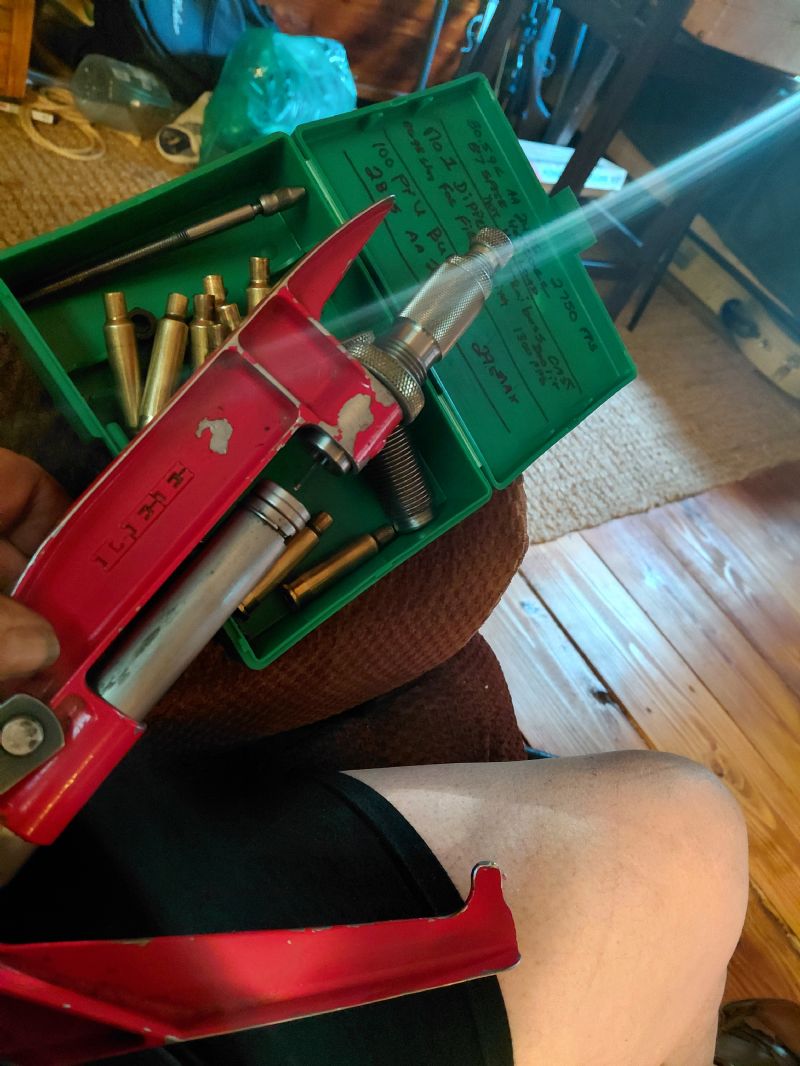

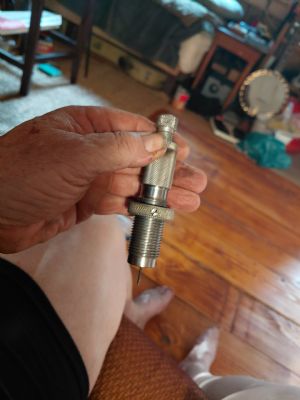

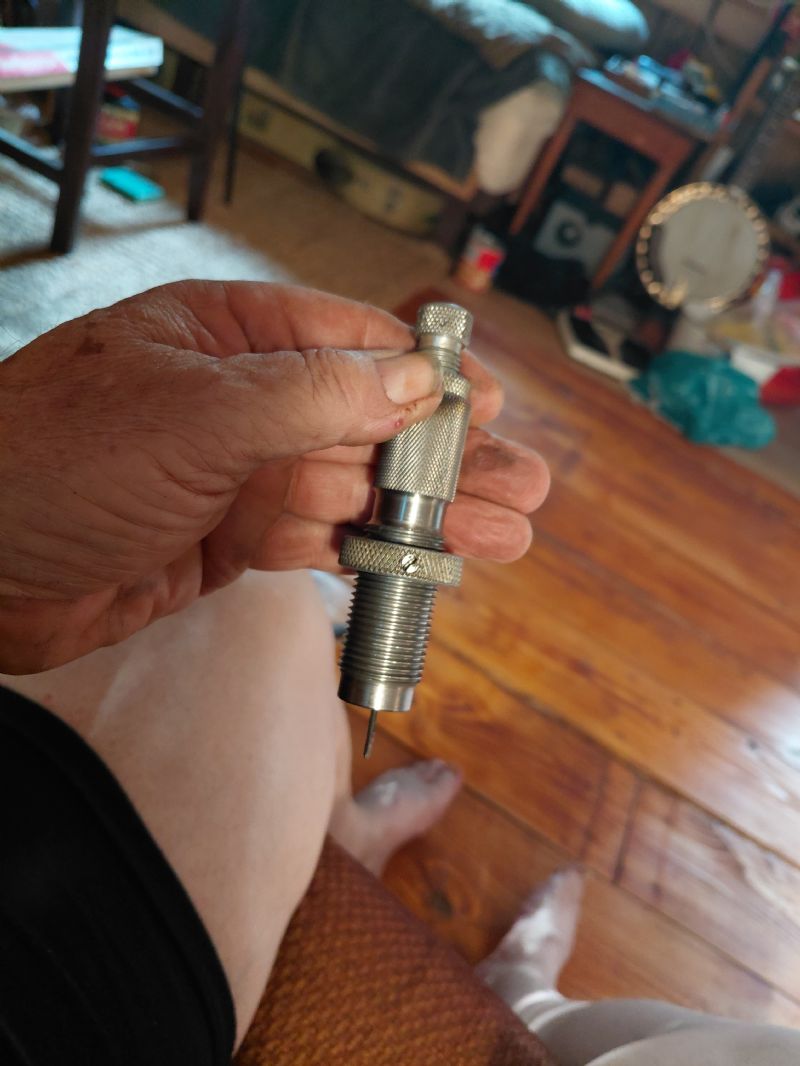

N..resizing die tha decaps.. too..
This is for the 25-35 Ai...
So in one pass it resizes n decaps the case..
Did 10 cases ..works pretty ok..





Flippin word changer.. :0[






Edited by - STUD figmo Al on 07/24/2025 15:44:20

Jul 24, 2025 - 4:02:16 PM

45339 posts since 3/5/2008

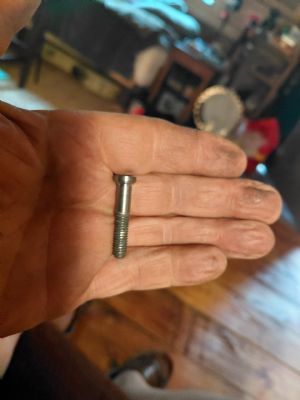

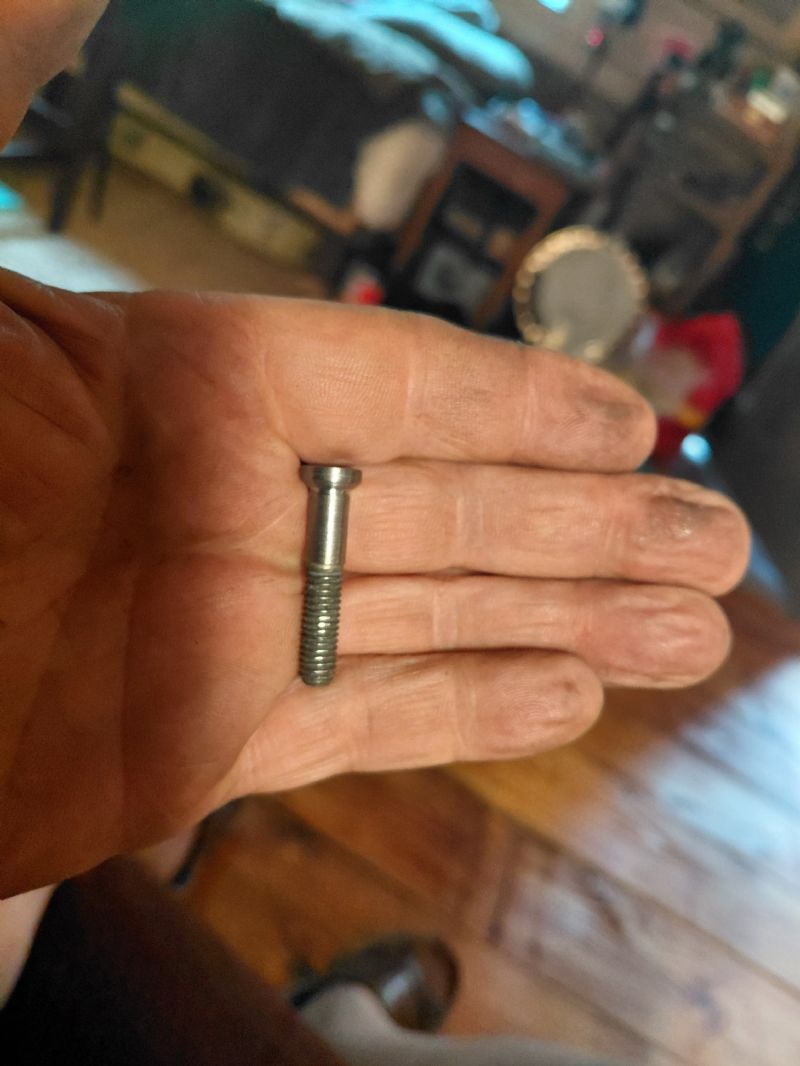

The screw... in the flesh... :0)




Jul 25, 2025 - 7:04:45 AM

45339 posts since 3/5/2008

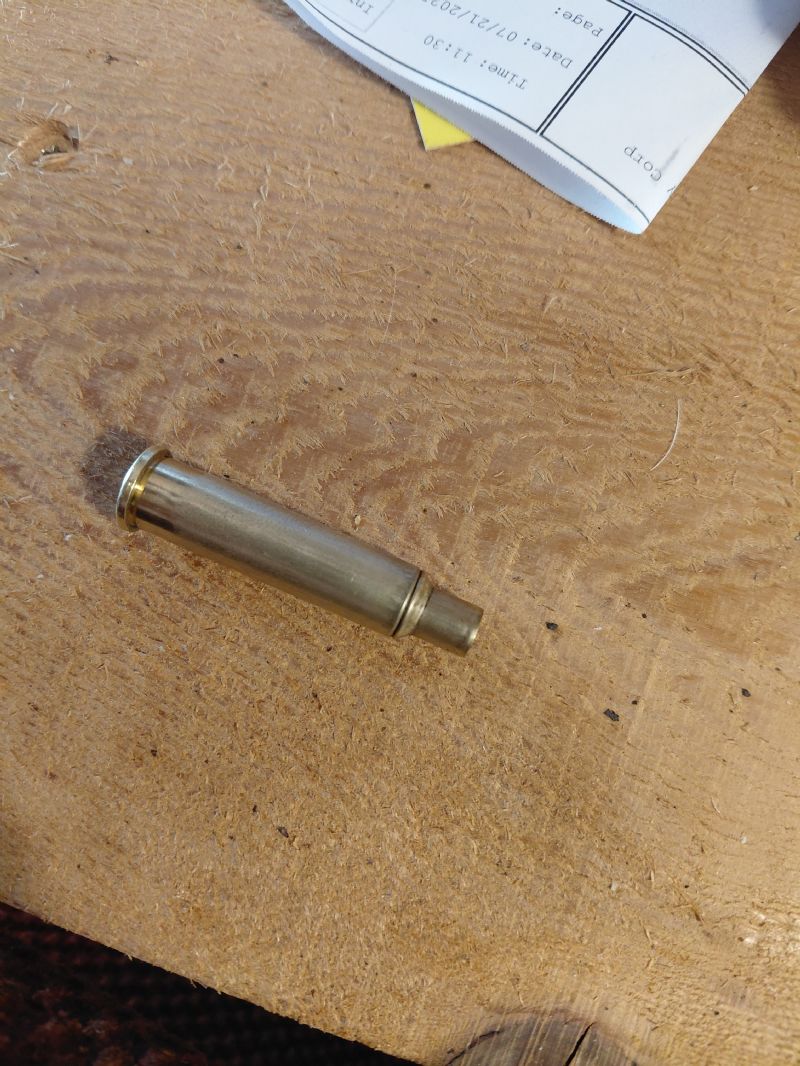

Here is an interesting concept i came up with...
I added a fold at the shoulder..
It acts kinda like a spring or shockabsorber ..
I can now load more powder than before...n still have zero extraction problums..

In the normal case..they would not extracted as well..using less powder..

I have loaded this case 4 times as of now..
Will be testing it out a bit more.. ;0)




Jul 28, 2025 - 3:27:05 PM

45339 posts since 3/5/2008

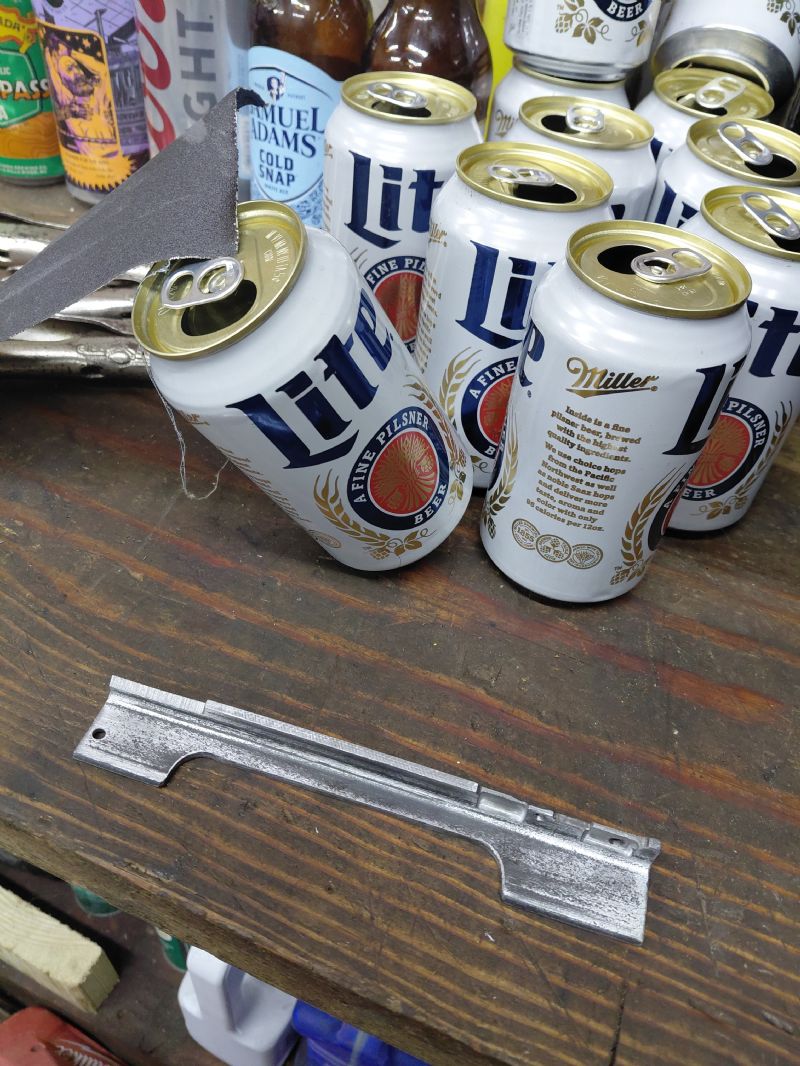

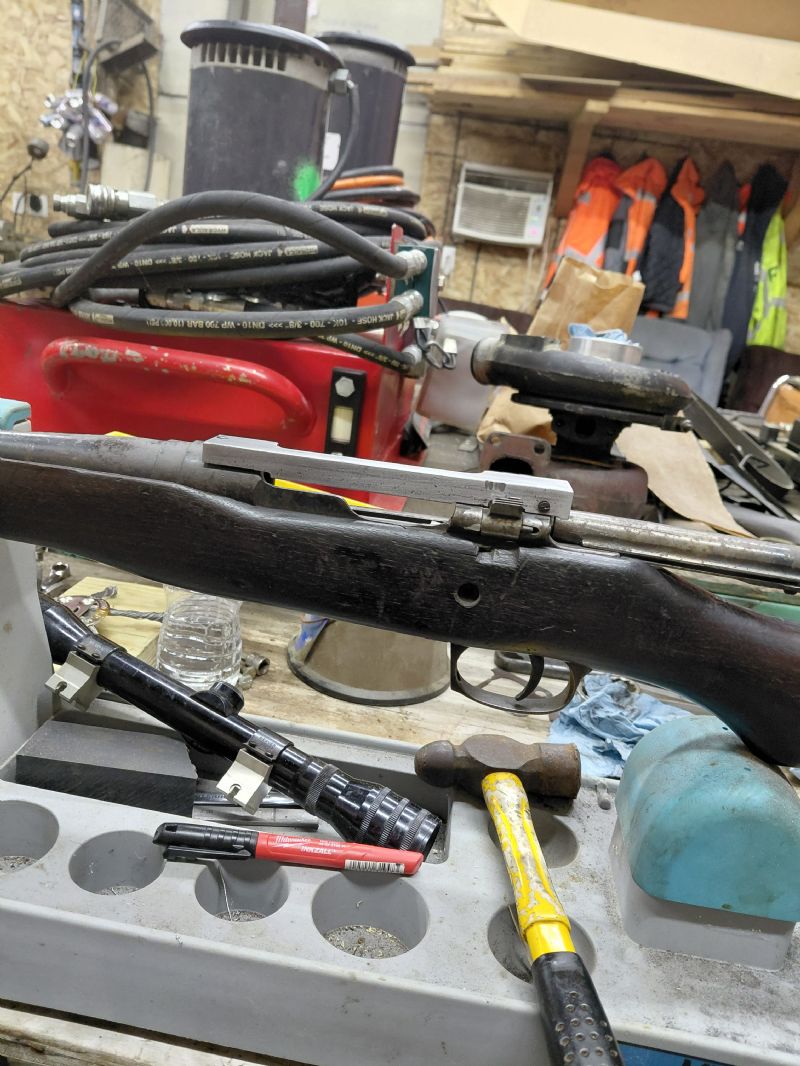

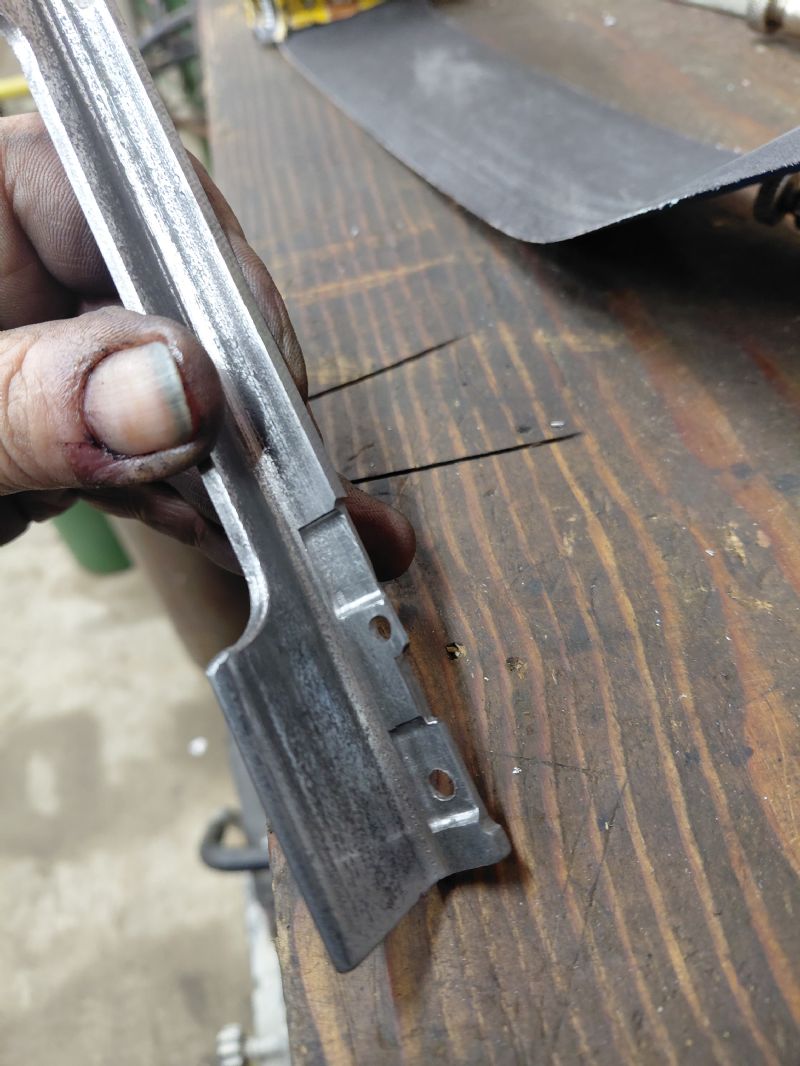

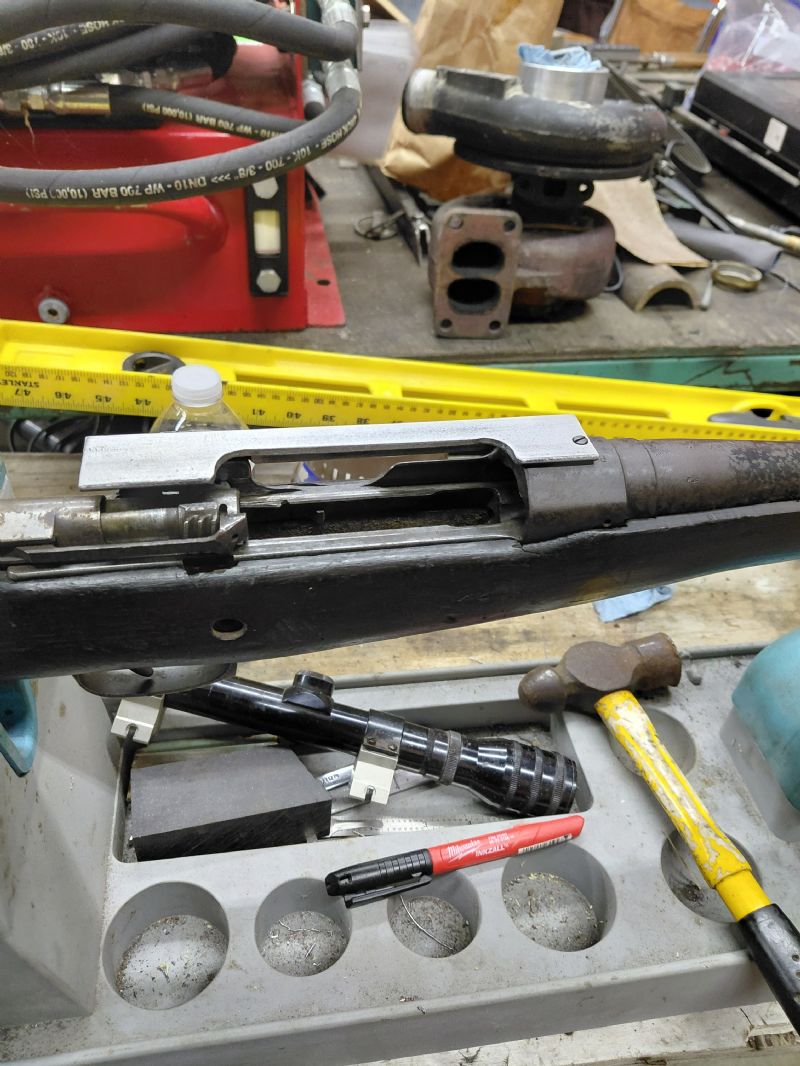

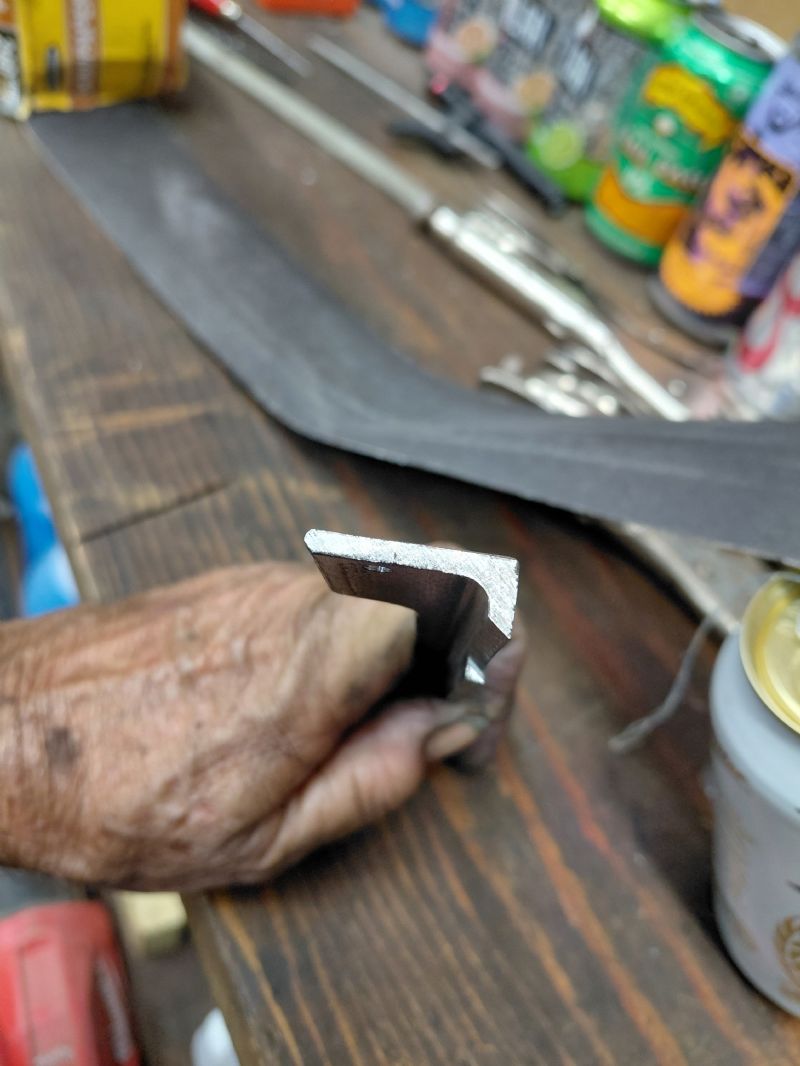

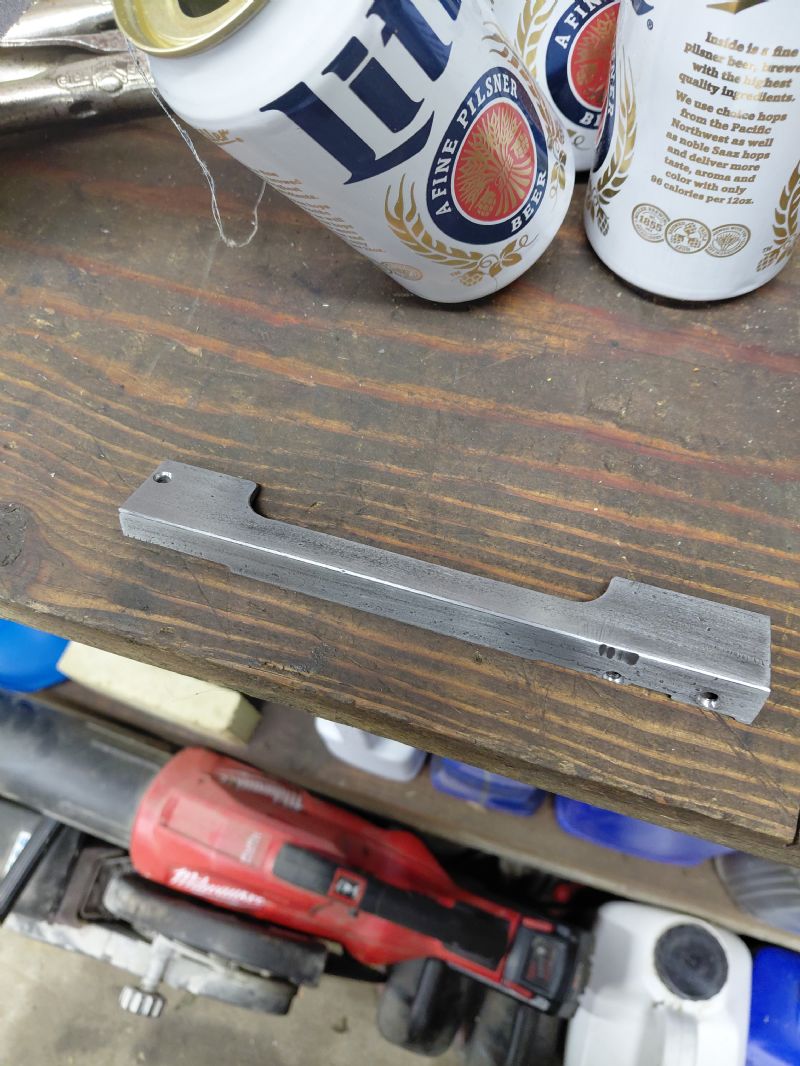

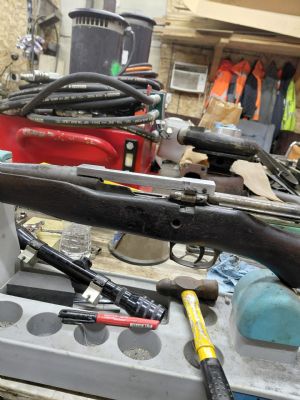

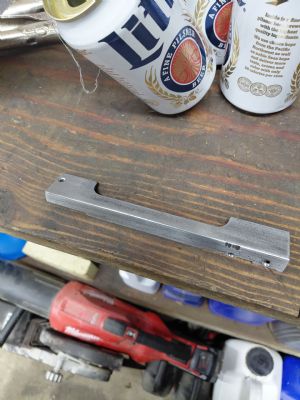

Milling a scope mount for a m-10 Canadian Ross rifle in 303 British...
Started off with a piece of angle steel..










Jul 30, 2025 - 3:14:58 PM

45339 posts since 3/5/2008

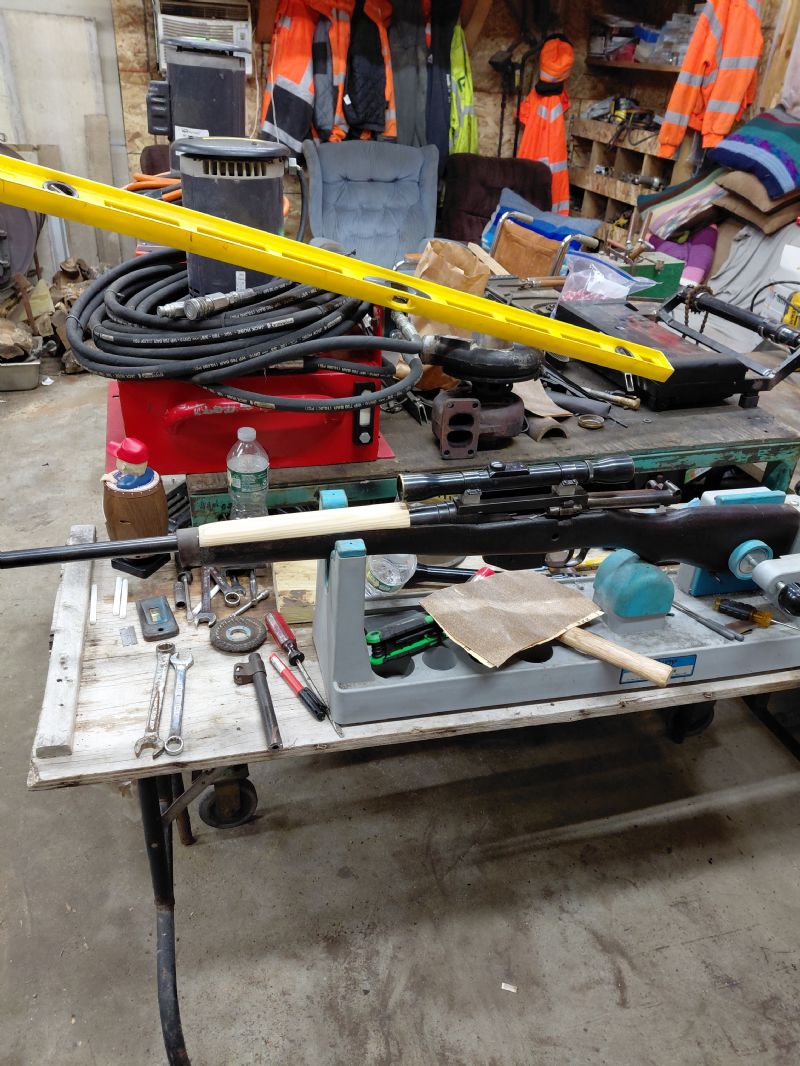

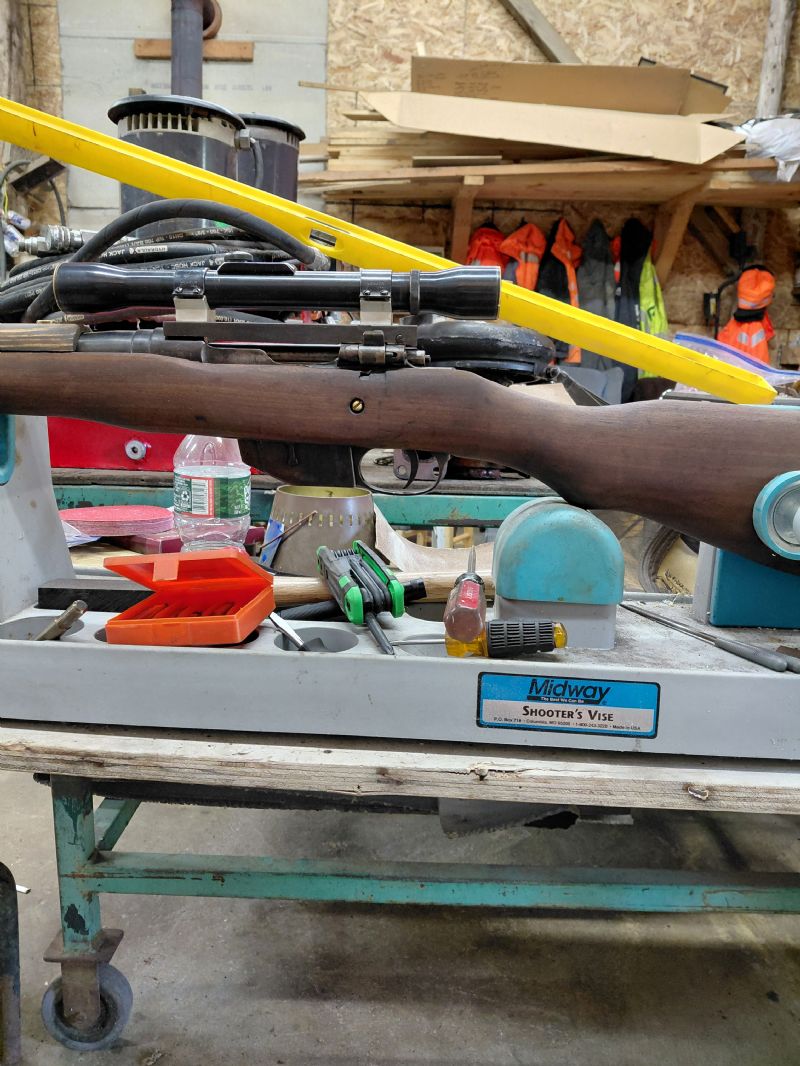

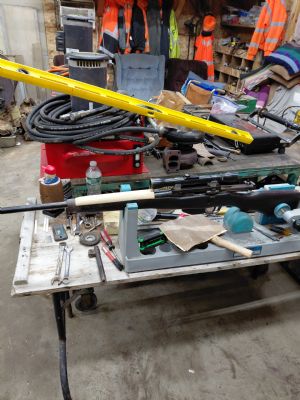

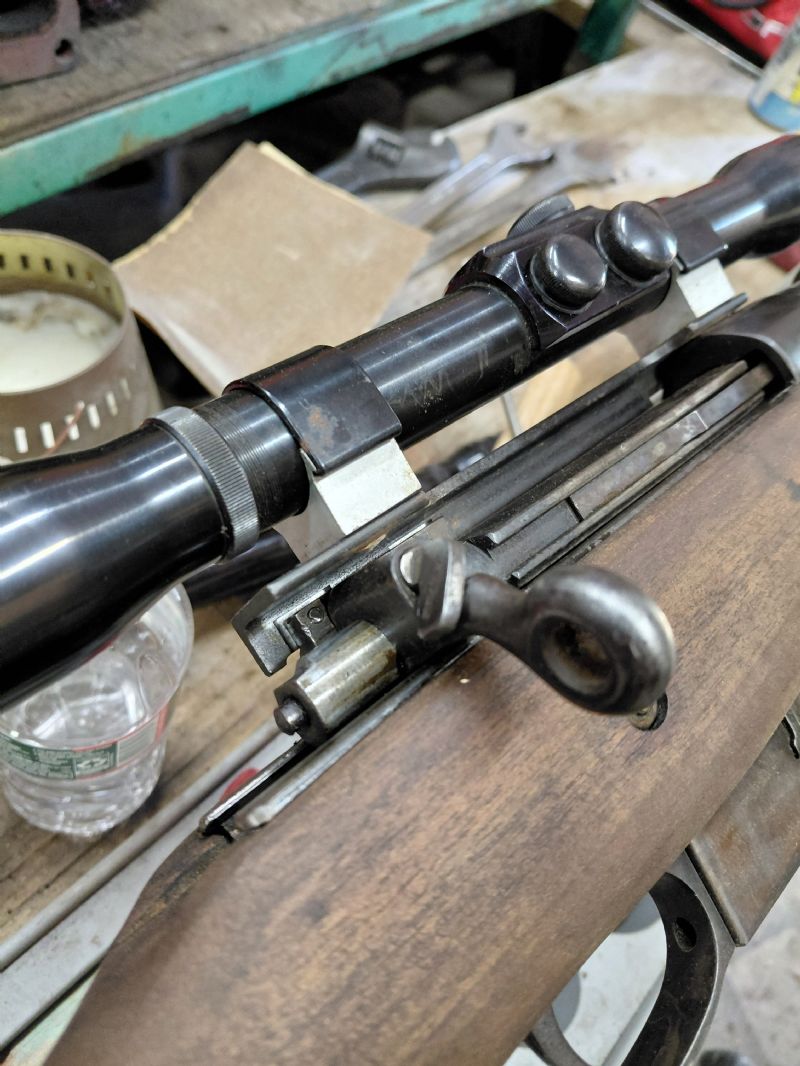

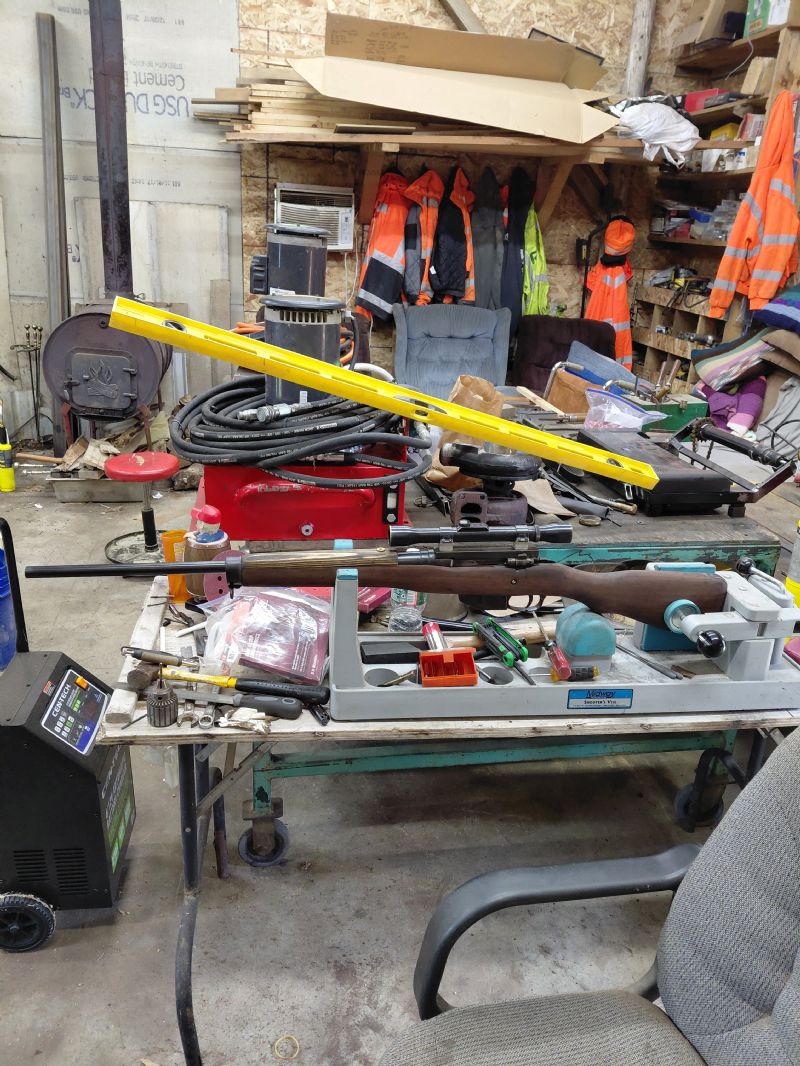

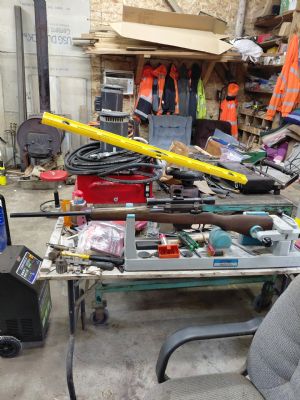

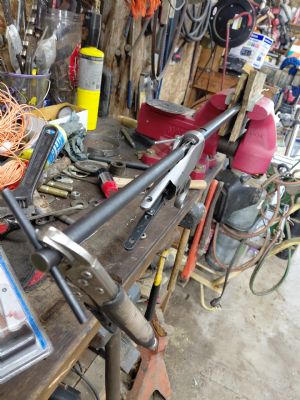

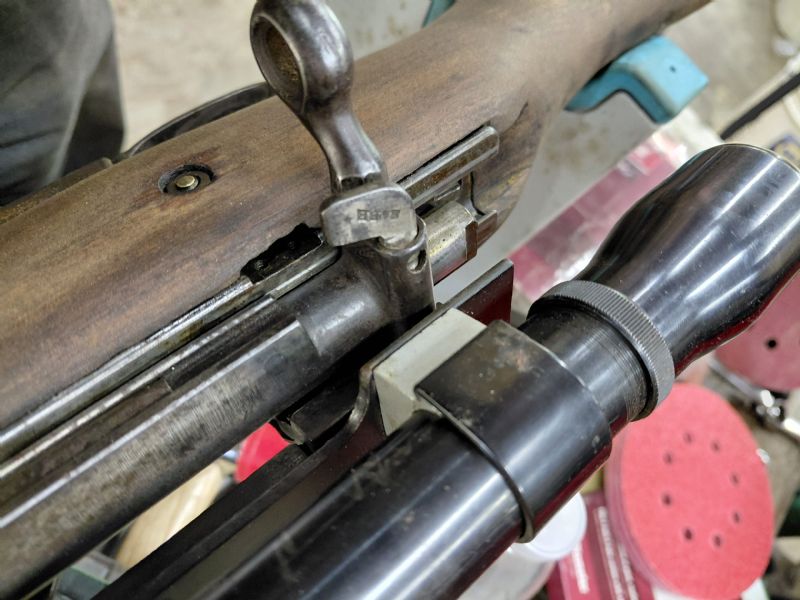

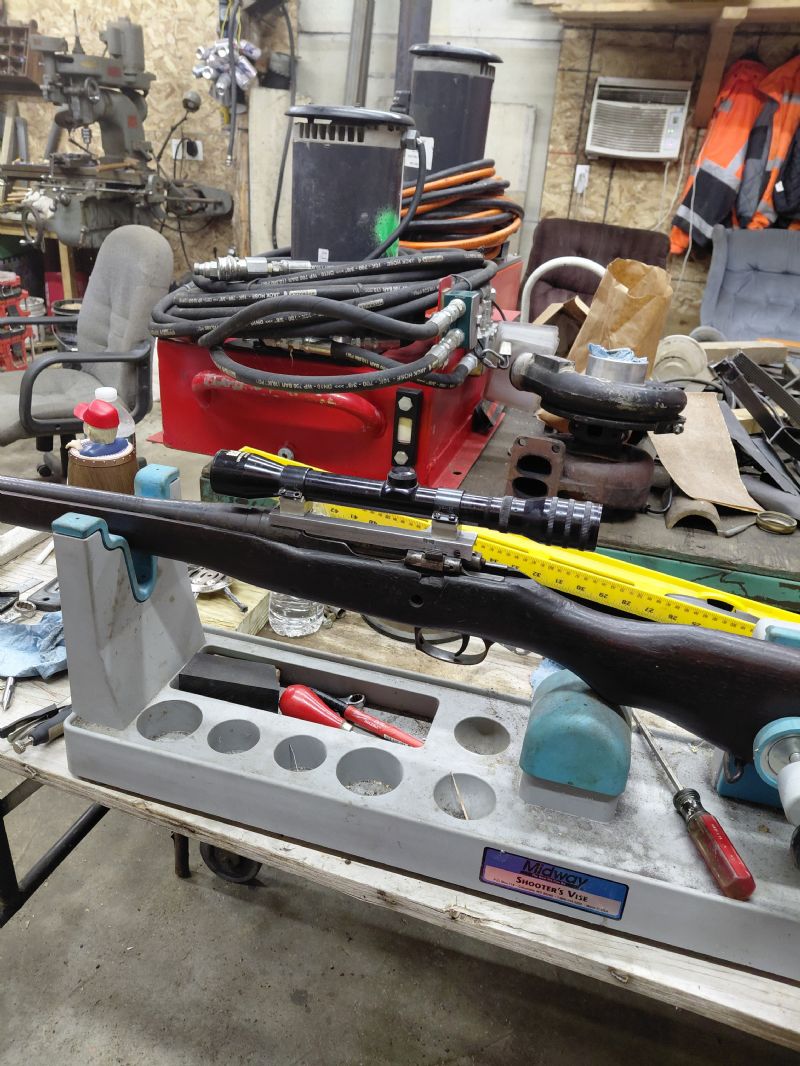

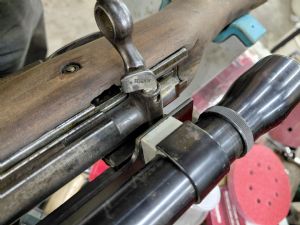

Scope mounted...cleaned n blued the steel parts added 5 round magazine
Cut the barrel to 24" from 29"..n re crowned the muzzel..
Zeroed the rifle at me range.. dose well..need to make some of me own ammo.. tho...

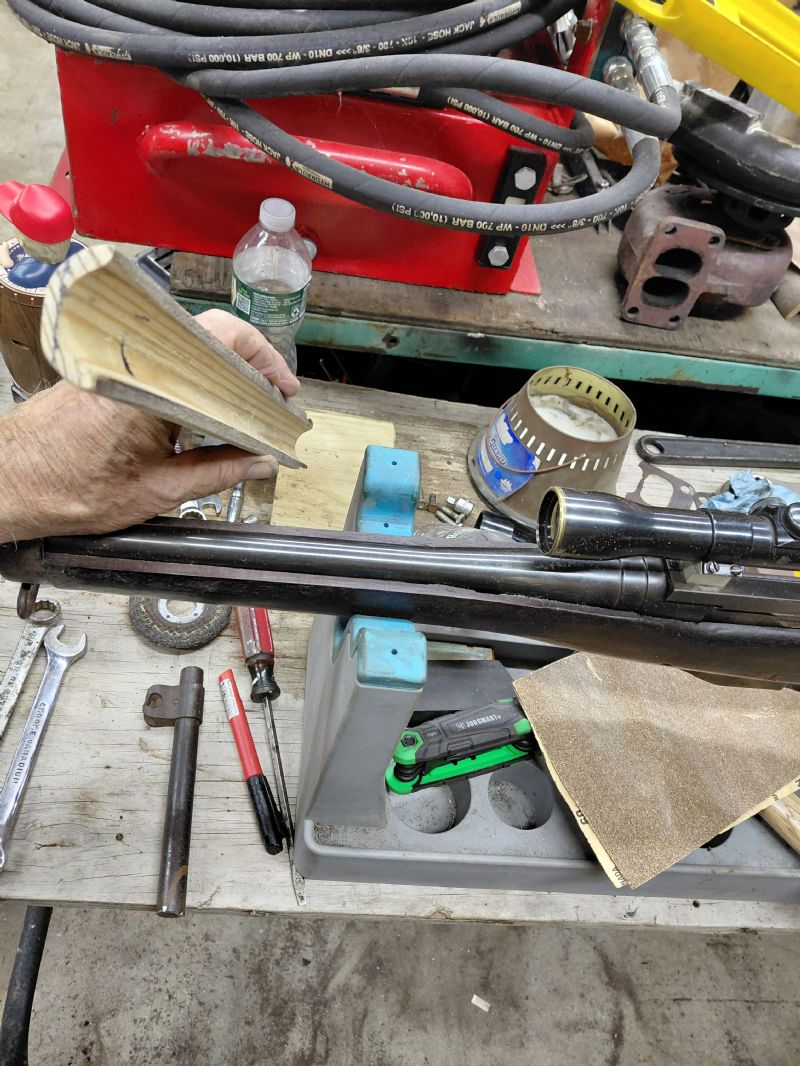

Now making the hand gaurd.. :0)




Aug 1, 2025 - 2:59:07 PM
likes this

45339 posts since 3/5/2008

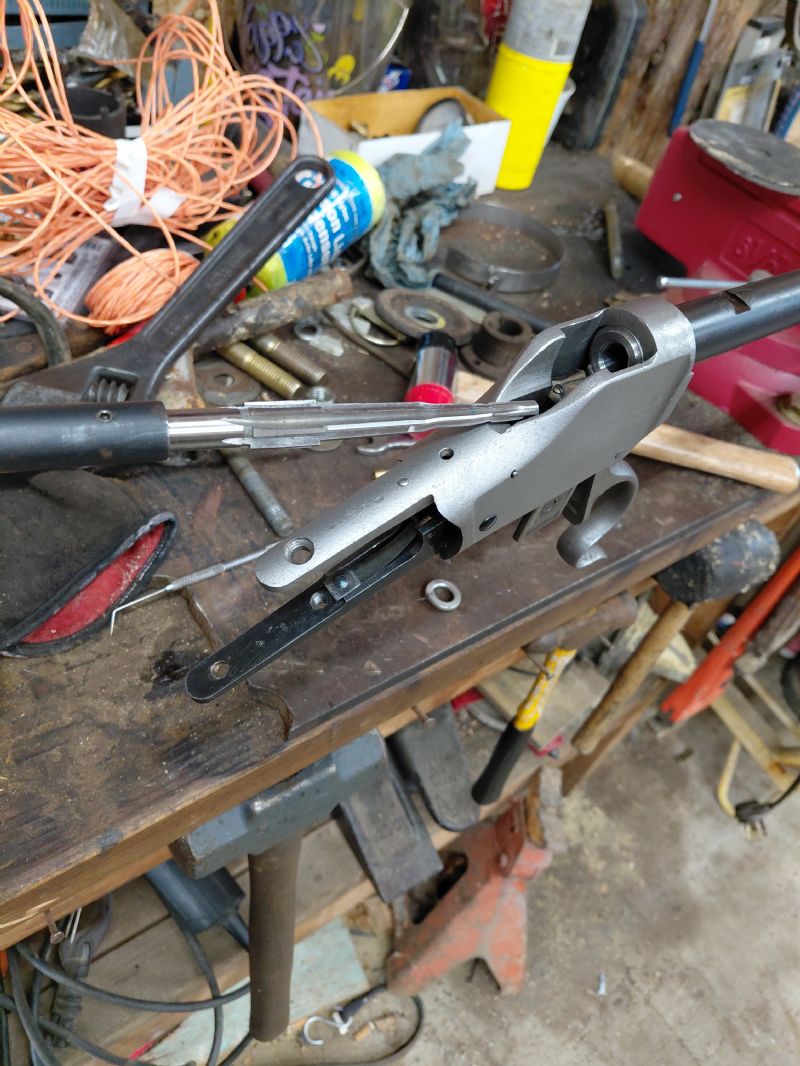

More of the project..








Aug 1, 2025 - 3:06:06 PM

45339 posts since 3/5/2008

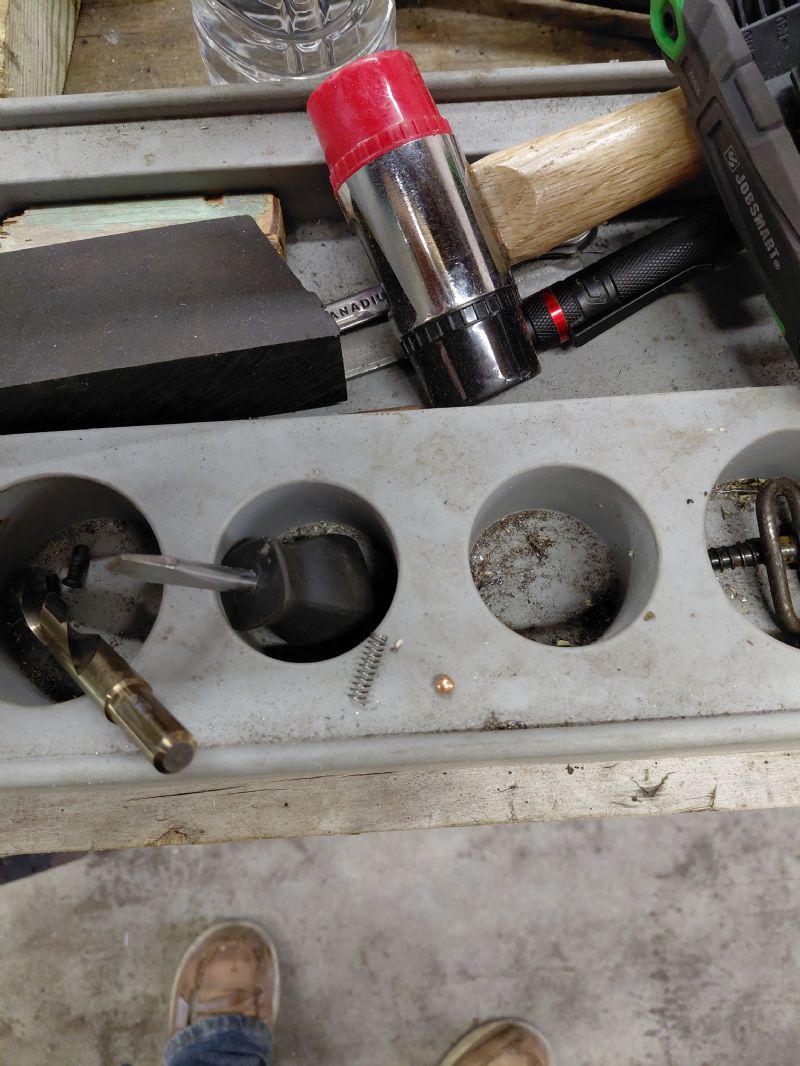

The swing safety was missing a spring n plunger..
So....
I sacrificed a clicker pen spring n a bb gun bb...
Cut the spring n used the bb as the plunger..works great.. :0)
Sanded the stock clean now addin a finish to it.birch wood casey stock finish..

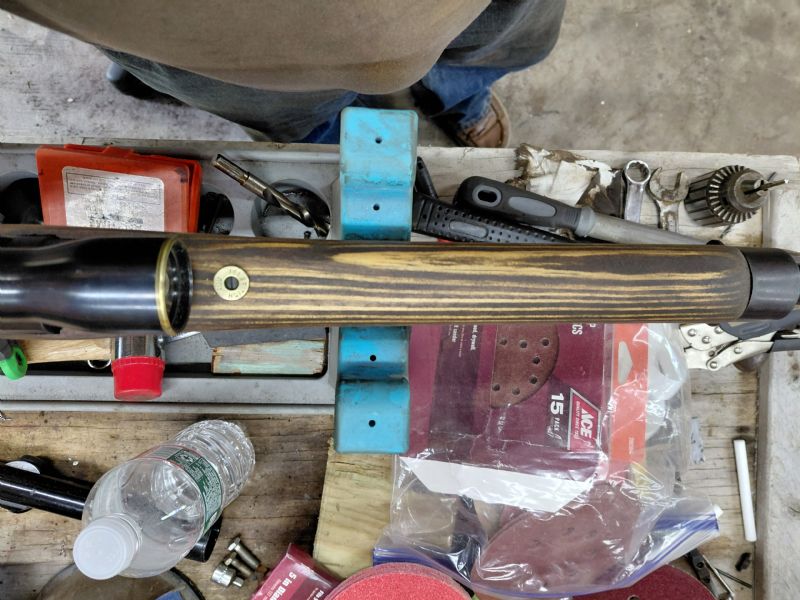

Staind the hand gaurd n attached it to the barrel via an old spent 303 Britt case..
The same caliber as the rifle.

Aug 1, 2025 - 3:09:25 PM

45339 posts since 3/5/2008

Oh..n used a brass bolt fer a stock bolt...

Aug 2, 2025 - 4:14:10 AM

63679 posts since 12/14/2005

When you speak of FPS, do you have a radar thingy that measures it for you ?

Aug 2, 2025 - 5:09:36 AM

45339 posts since 3/5/2008

quote:
Originally posted by mike gregory

When you speak of FPS, do you have a radar thingy that measures it for you ?


Yes a ..

Chronograph...it measures velosity..

Aug 7, 2025 - 3:33:54 PM

45339 posts since 3/5/2008

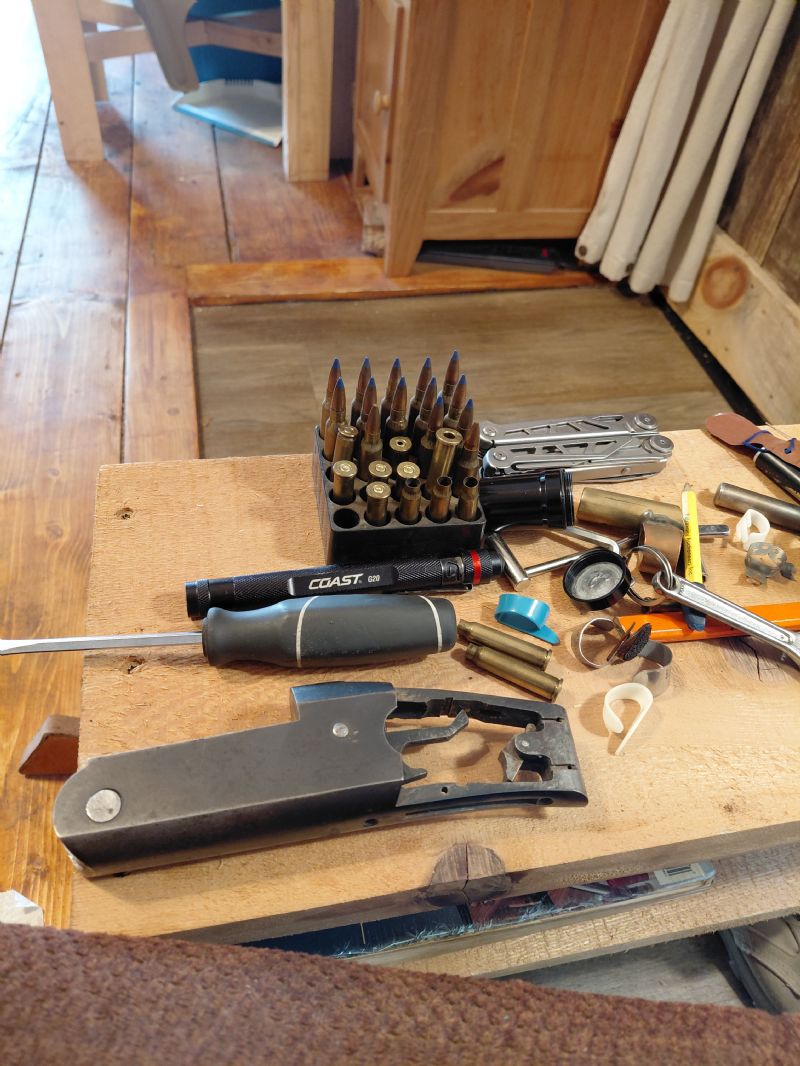

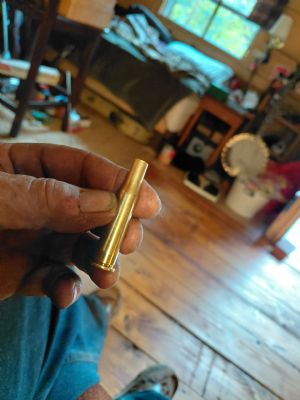

25-35 wcf...

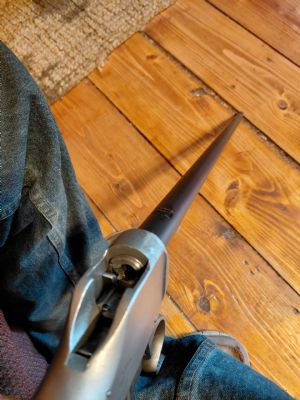

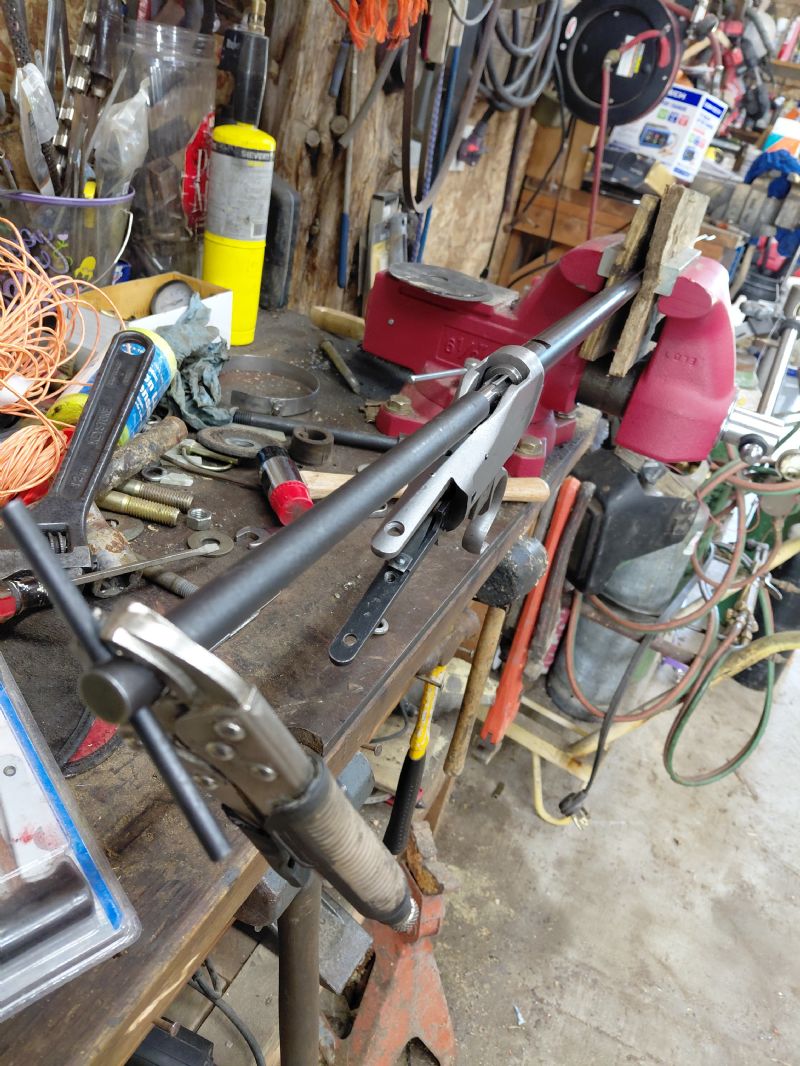

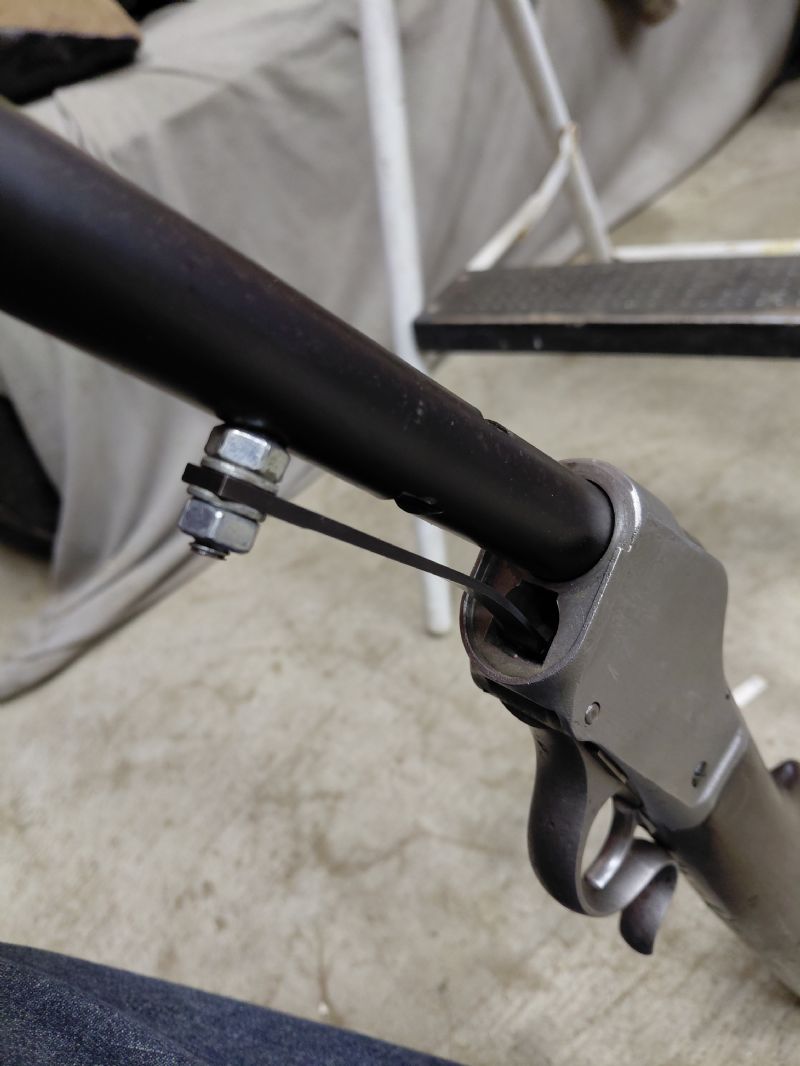

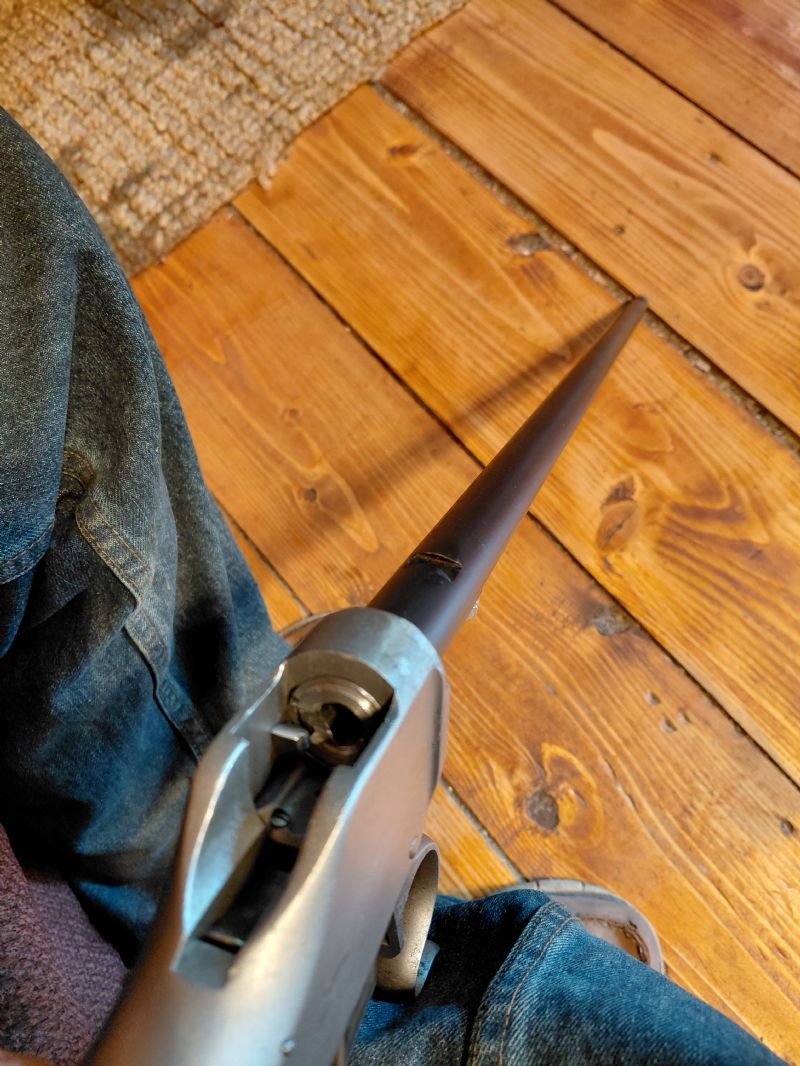

Picked up an old 25-20 savage sporter barrel..
It has a 0ne in fourteen inch twist rate..
Good fer cast boolits...
Put it in me 1885 winchester falling block..
The trick to this job is that the barrel shank width is a tad shy..
So had to make it snug up with no..shoulder on the barrel..

Proof tested it today..with a hot load....

Now I gotta cut the barrel fer the extractor...

The chambering had to be finished all by hand as there was no room fer fergiveness.... :0/








Edited by - STUD figmo Al on 08/07/2025 15:44:56

Aug 8, 2025 - 1:46:37 PM
likes this

45339 posts since 3/5/2008

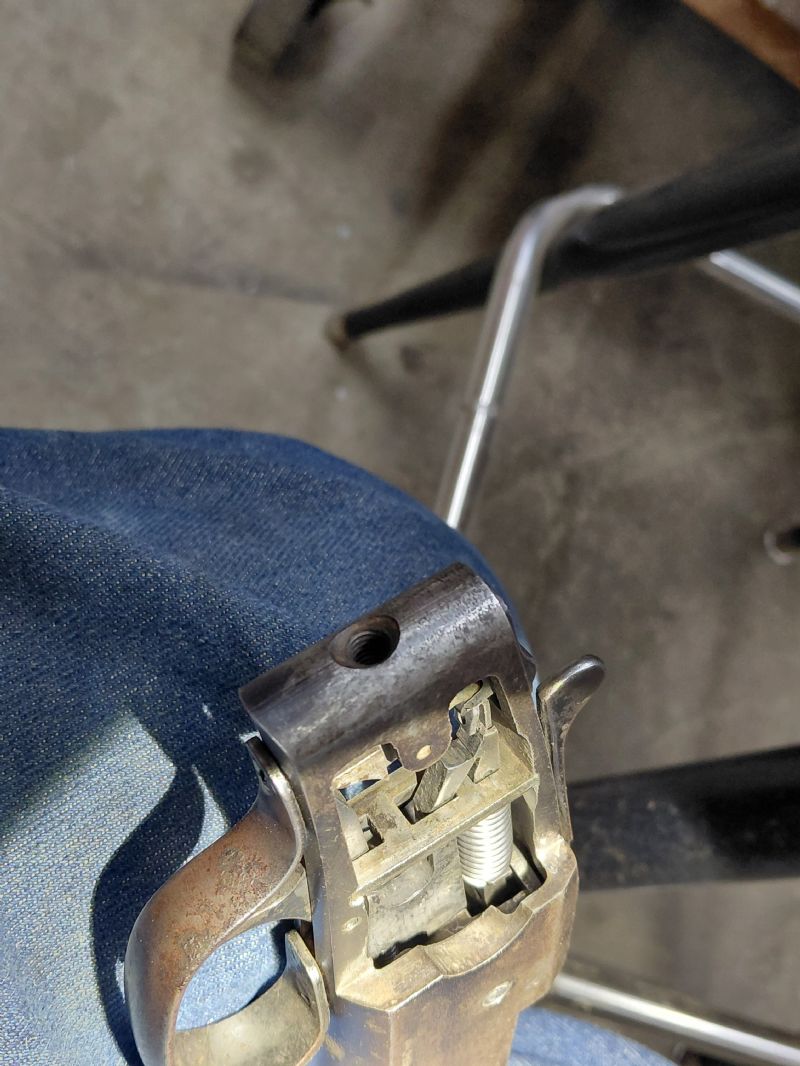

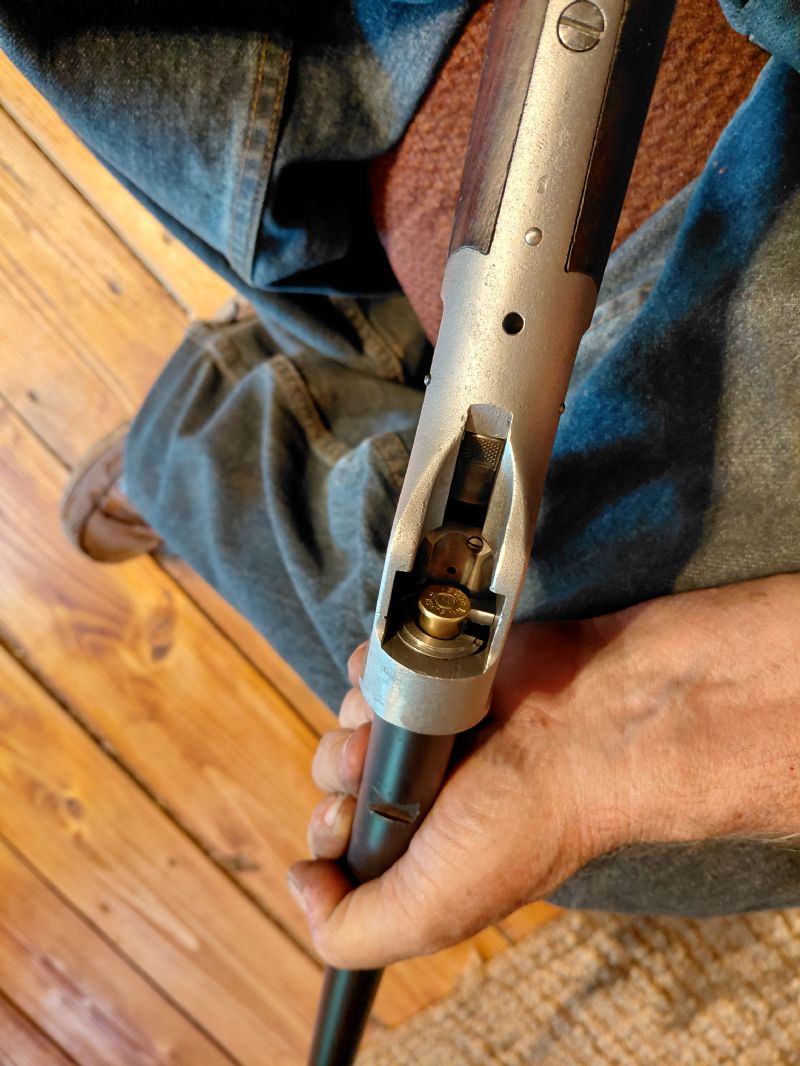

Extractor port is cut n extractor cut n fit..
Test fired with another proof load... ( stiff) powder charge...
Extracted just fine..
Can be made to eject too....depending on how brisk you use the lever..
Gotta make a forearm next..




Aug 9, 2025 - 9:04:58 AM

45339 posts since 3/5/2008

An..unsuspecting piece of wood in the driveway...
Looks to me to be a piece of ..forearm fodder... ;0)
