quote:

---

Originally posted by STUD figmo Al

Next possible project...
.220 swift...
On a.. falling blocks works.. action..
Much differnt from the 1885 winchester I have been working with..

Ash wood for the from scratch stock..n forarm..

We'll...see how this goes... :0/

---

Started on this barrel but it is not usable for the 220 swift..Just not nuff metal at the shank....

I'll keep looking fer one..

Cookin up an idea for a ..6mm k hornet...

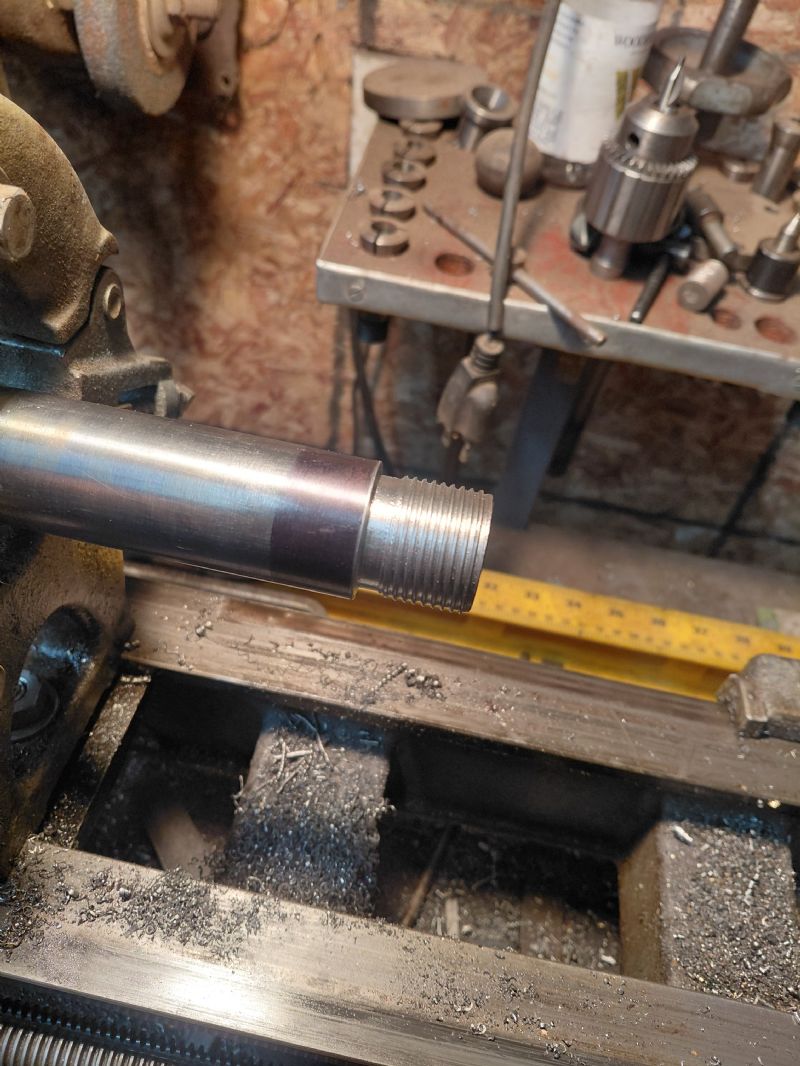

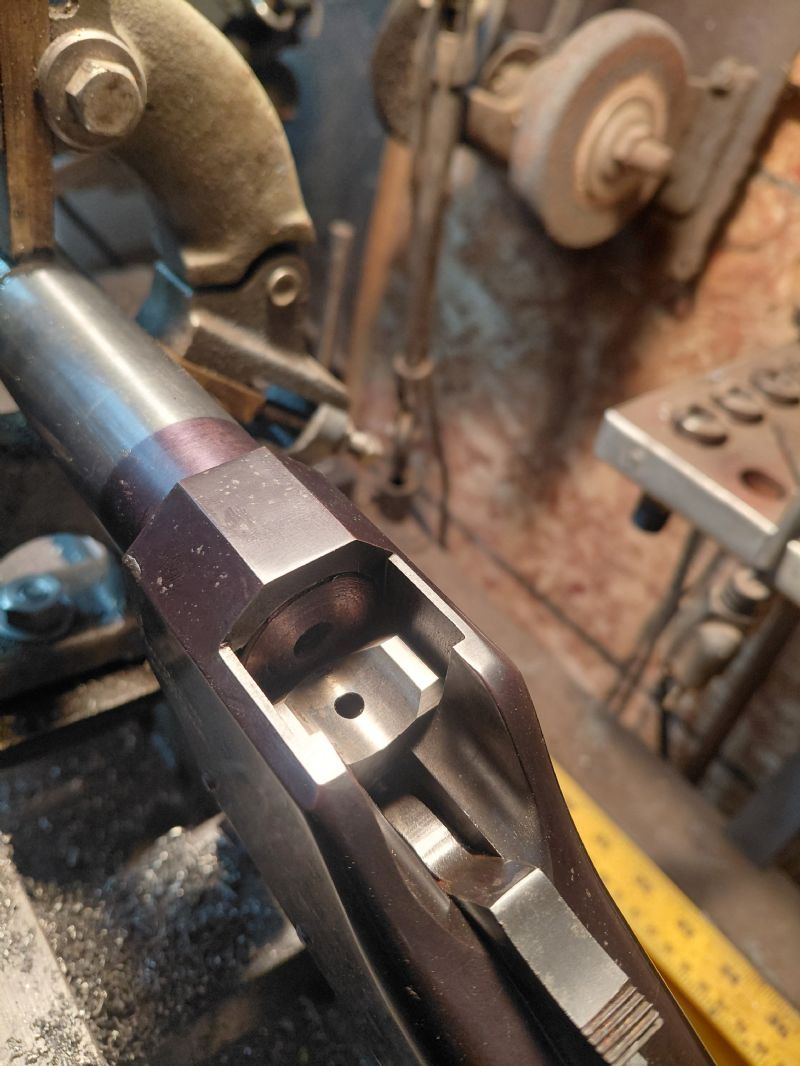

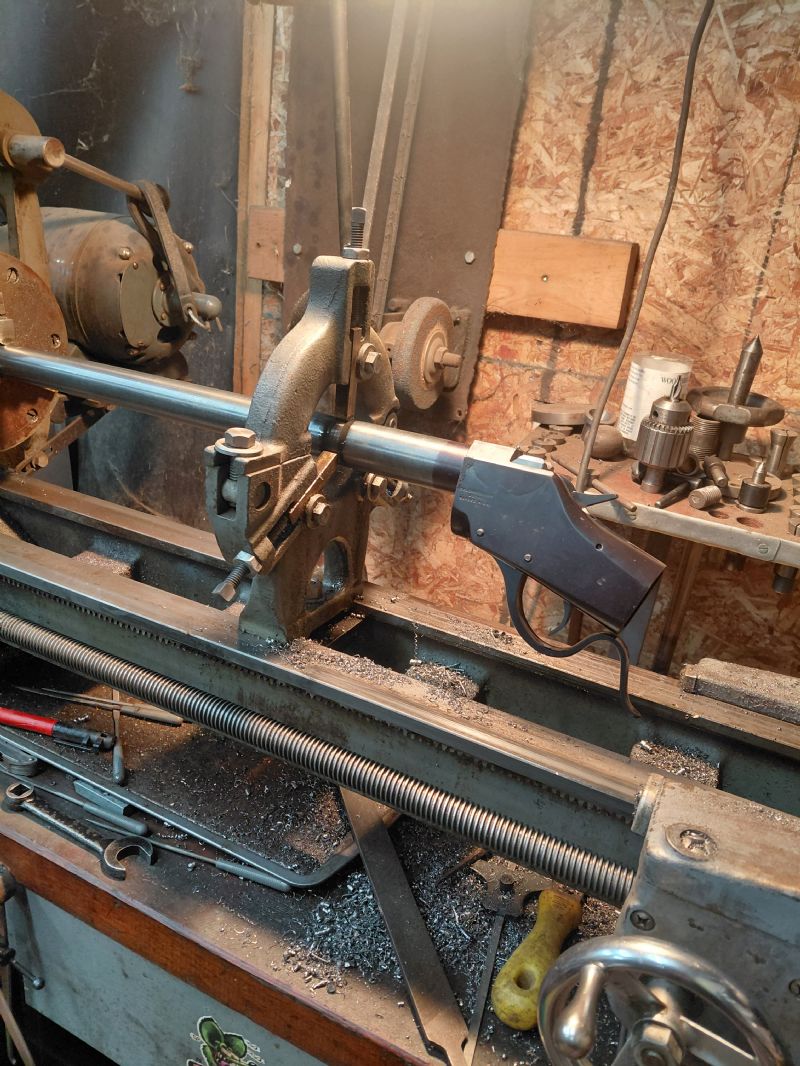

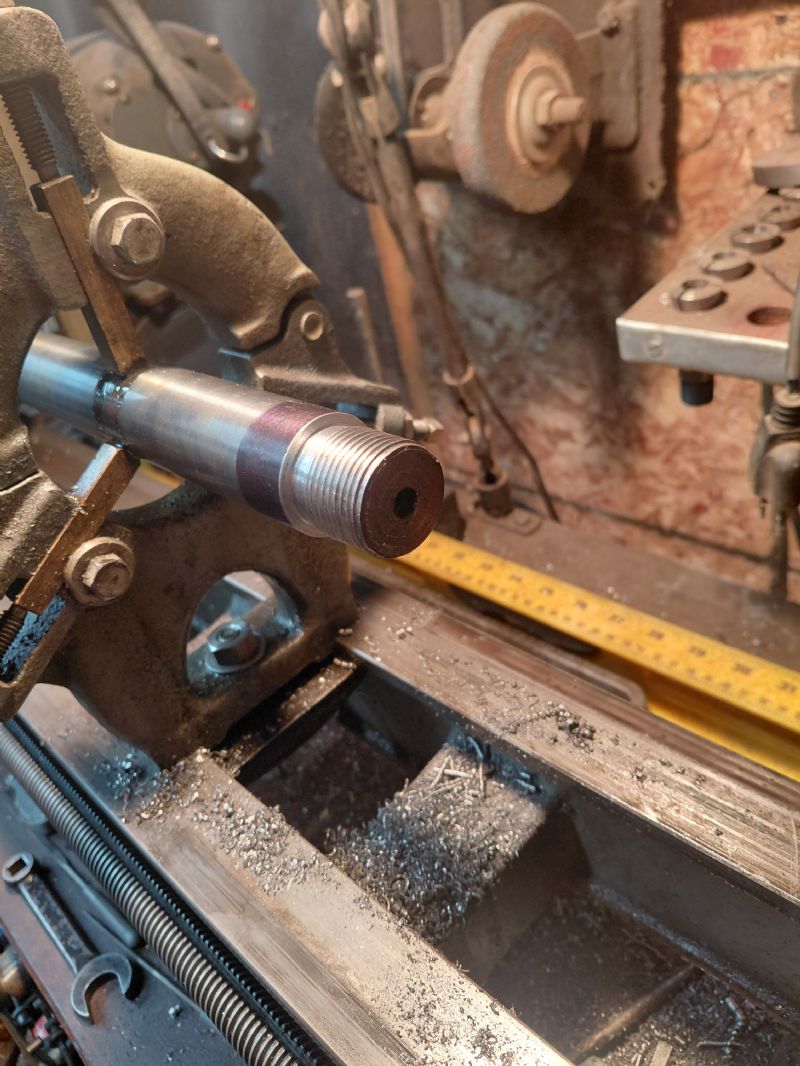

6mm barrel is in..cut to within..
.0001...I only know that becose .0001..is the thinest feeler gage that I have..
N it is just rubbin the diecome ..
Die for machining..

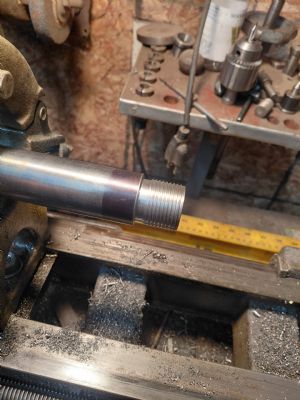

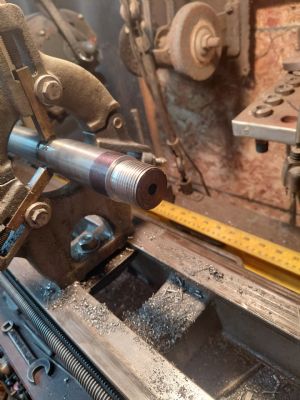

Square threads as opposed to v threads 12tpi..

Stainless steel too...

Waiting on tools I need to proceed...
Coupla ah reamers..n ..such..

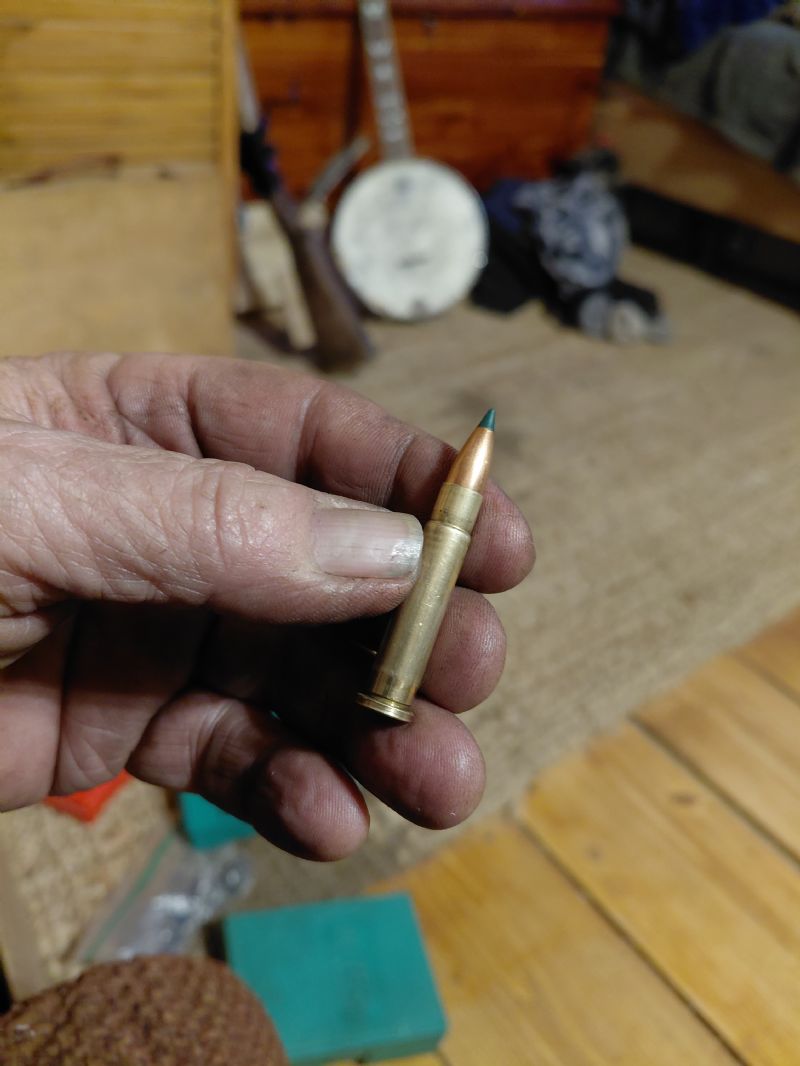

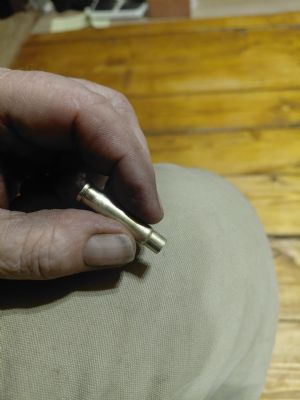

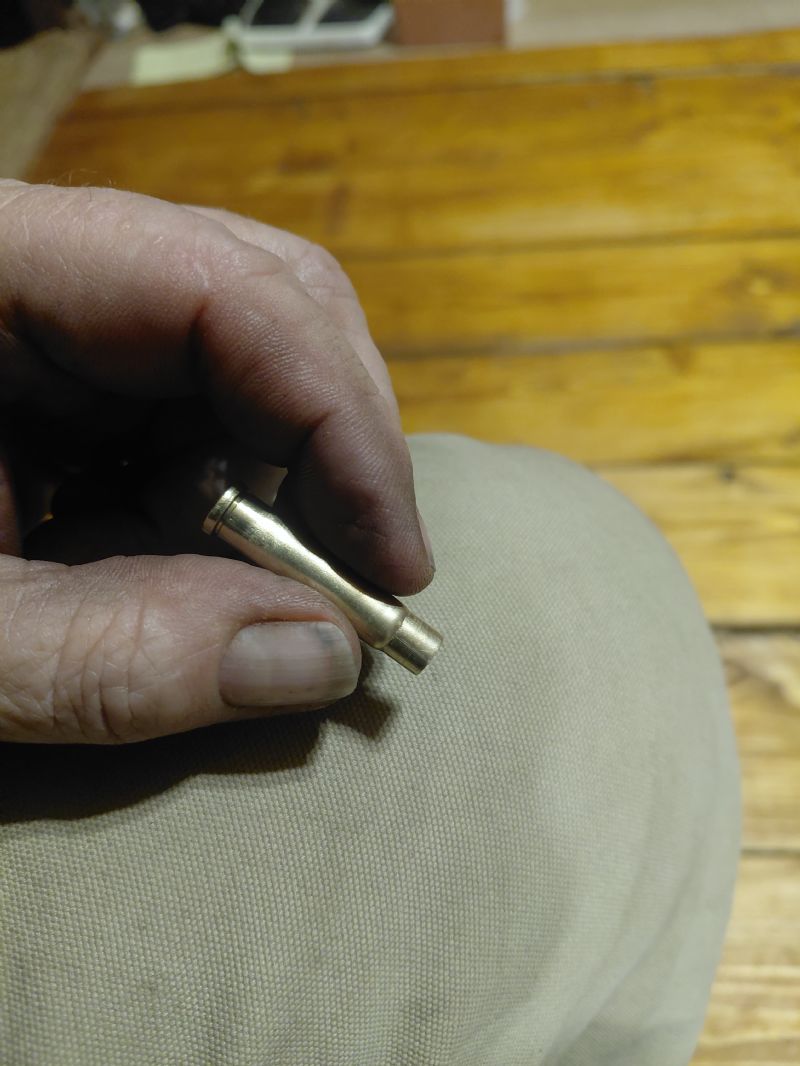

Test fired the 6mm hornet today..
Seems to be workin out ..ok... :0)

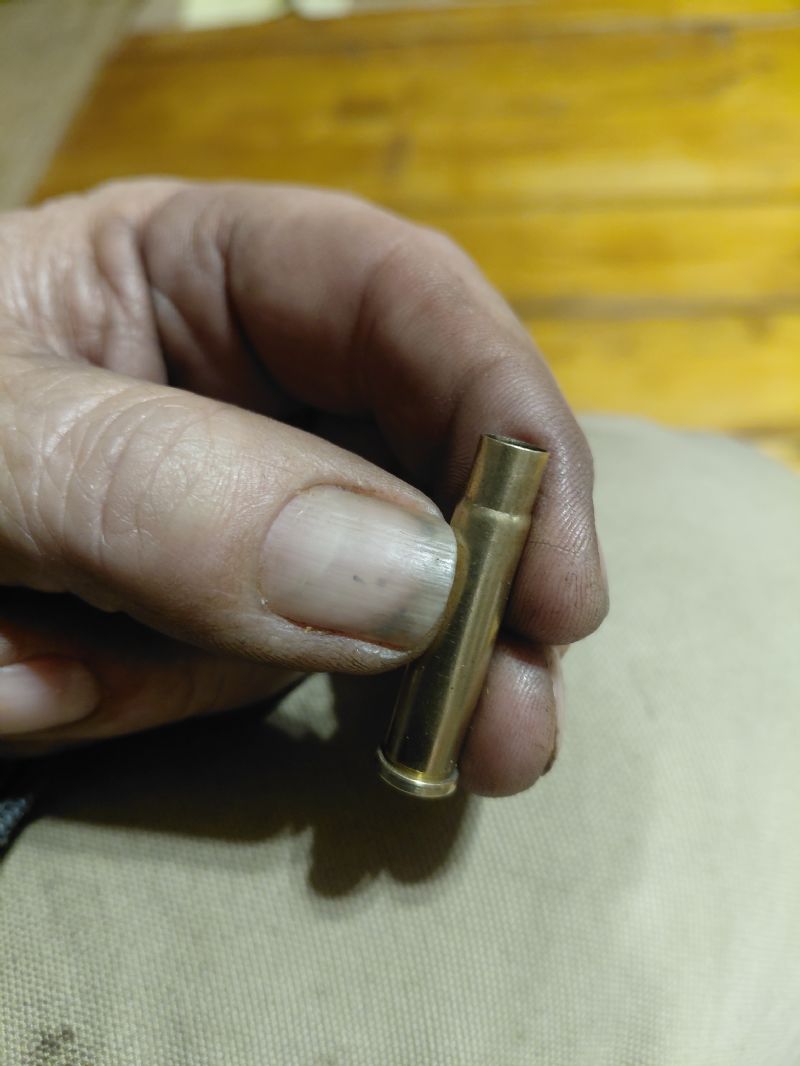

The case has a tad more expansion or...buldge than I was lookin for..

But that is ok..as it is no more than i have seen in factory ammo fired in factory chambers..
N..as a bouns..if I play me cards right..n..am bit carefull..
I will be able to make a resize die with the chamber reamer that I have..
The pilot that I had to use..was not a perfect ..fit.. but mooey good'nuf..
So there was a tad of wobble while reaming..

Had to use 3 differnt reamers to cut this chamber..
So no expense..on a custom ground reamer.. $big bucks for that...
Well more n I wanna spend.. :0)

The stock...

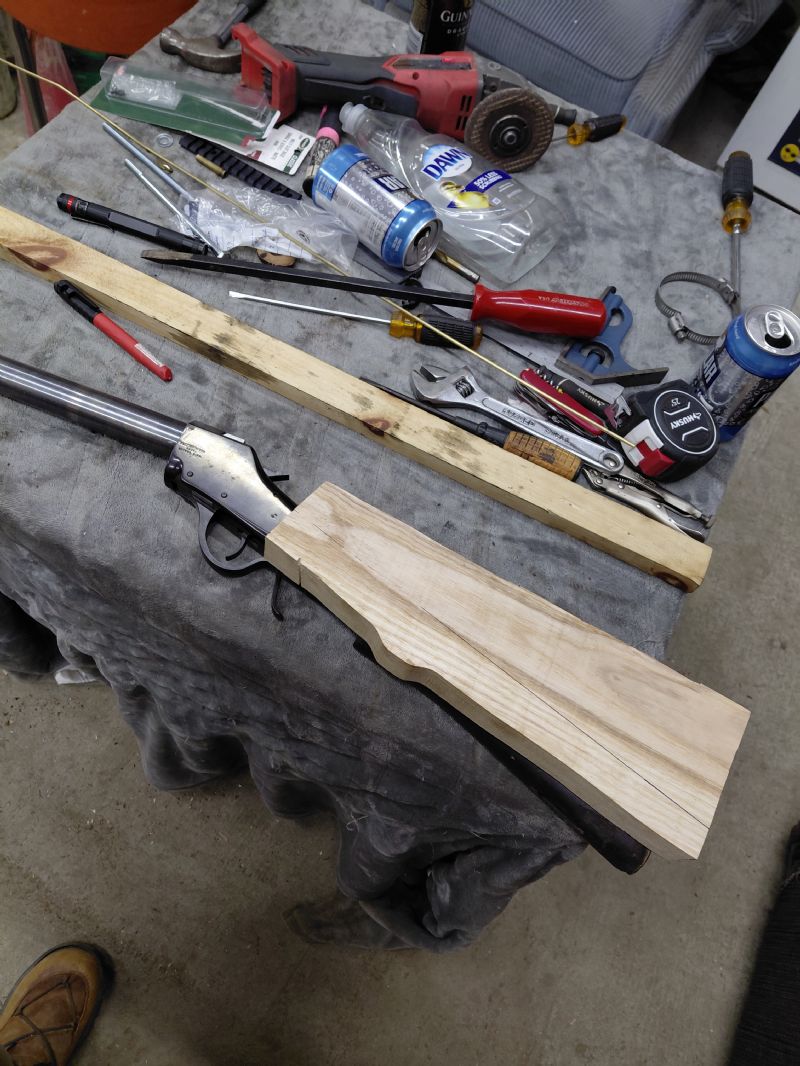

Started cutting on the raw blank..
This is more complicated than it looks to do..

While rummaging through stuff today..

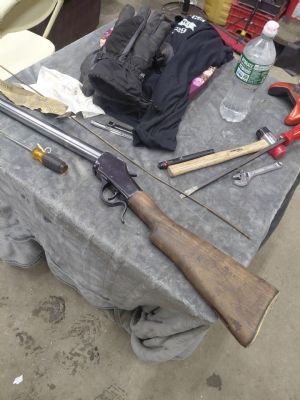

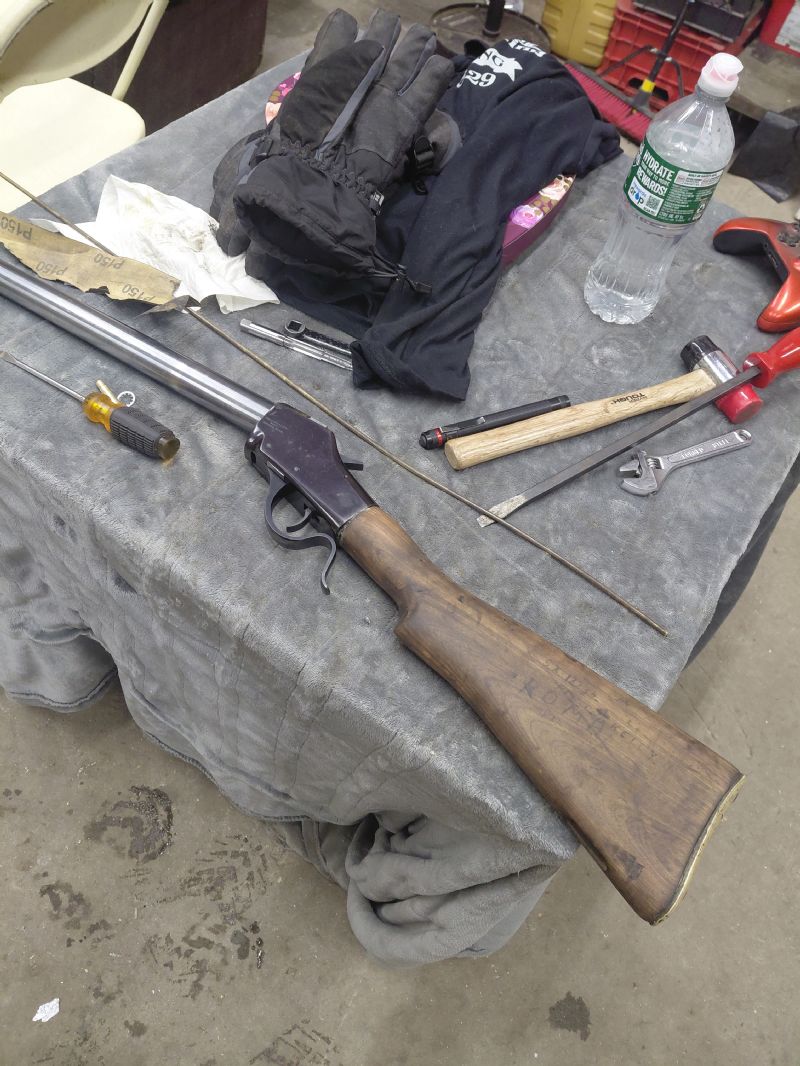

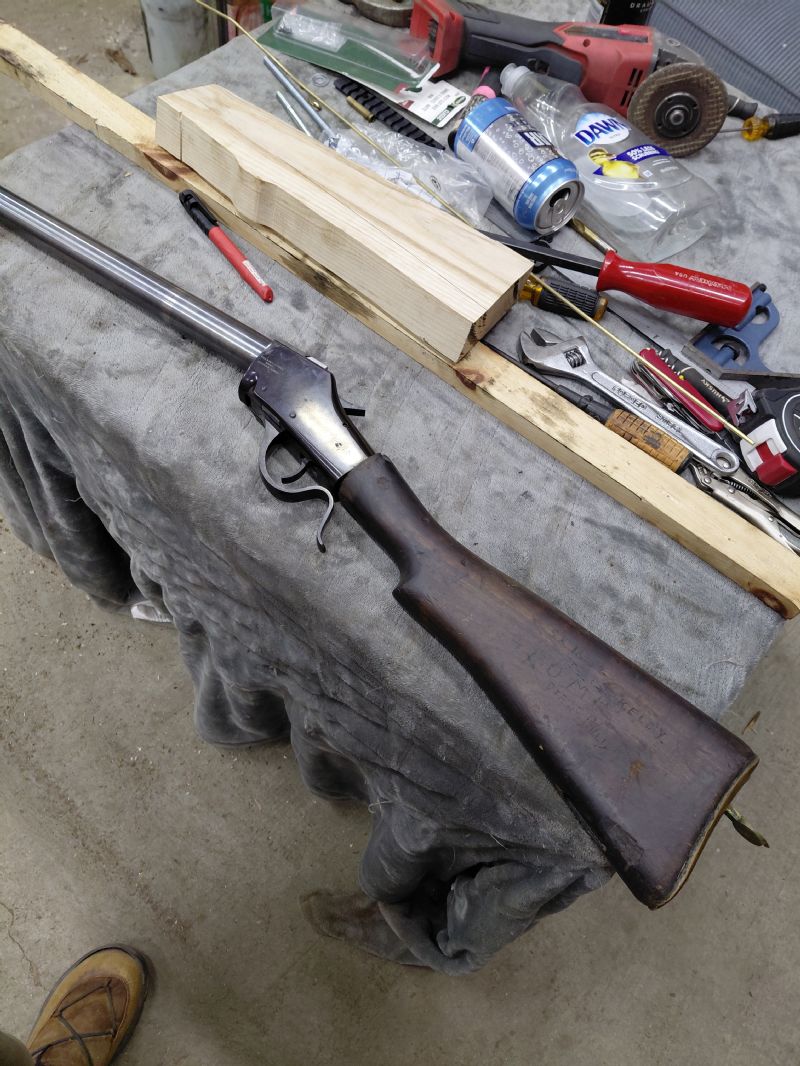

I found an old smle 303 butt stock...

Pretty close fit...

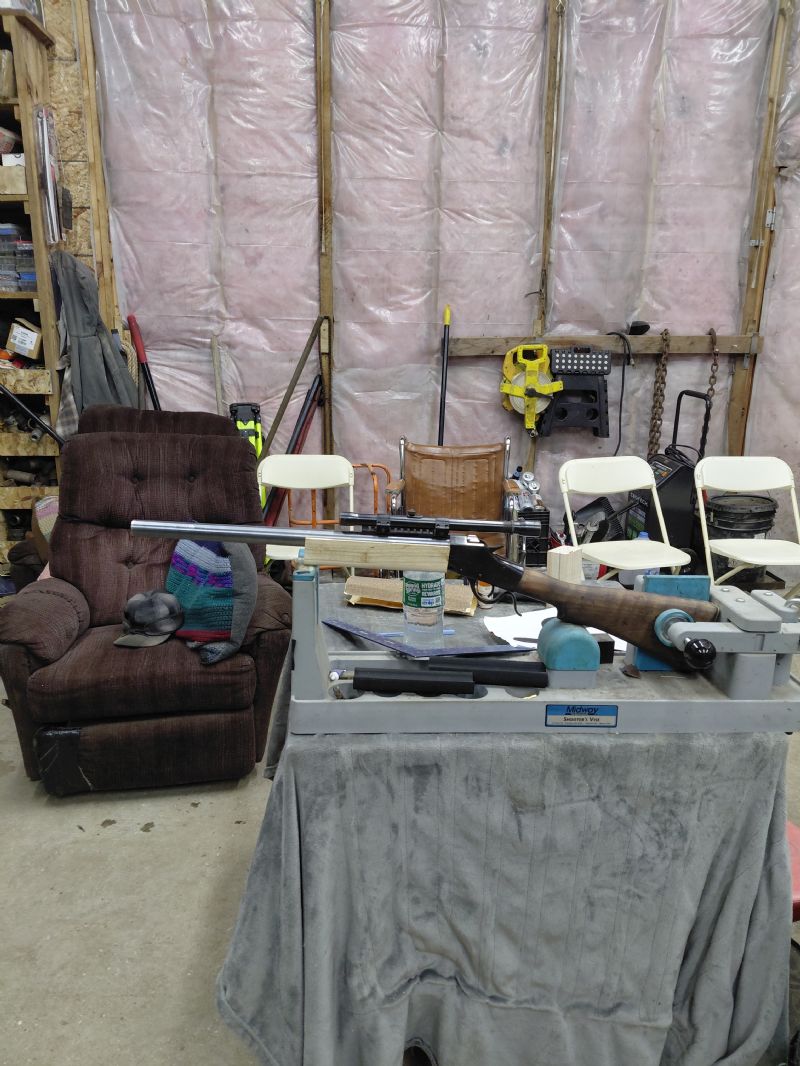

Now I have a stock that will work..
It kinda takes the pressure off the raw stock project..
So I can relax a bit..n make a better go of it..

Still gotta bunch of metal work to do too..

Ho speed checked another load today..
2206 fps 80 gr bullet..
With a 70 grain bullet n..one more grain of powder..

Might get to just shy of 2400 fps..

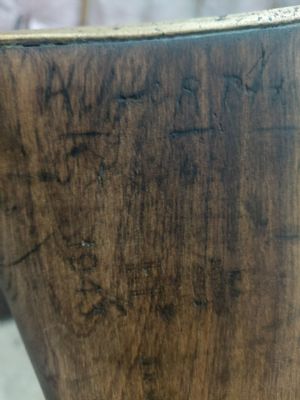

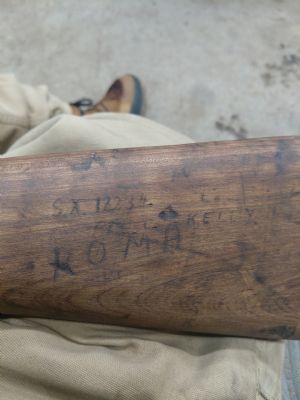

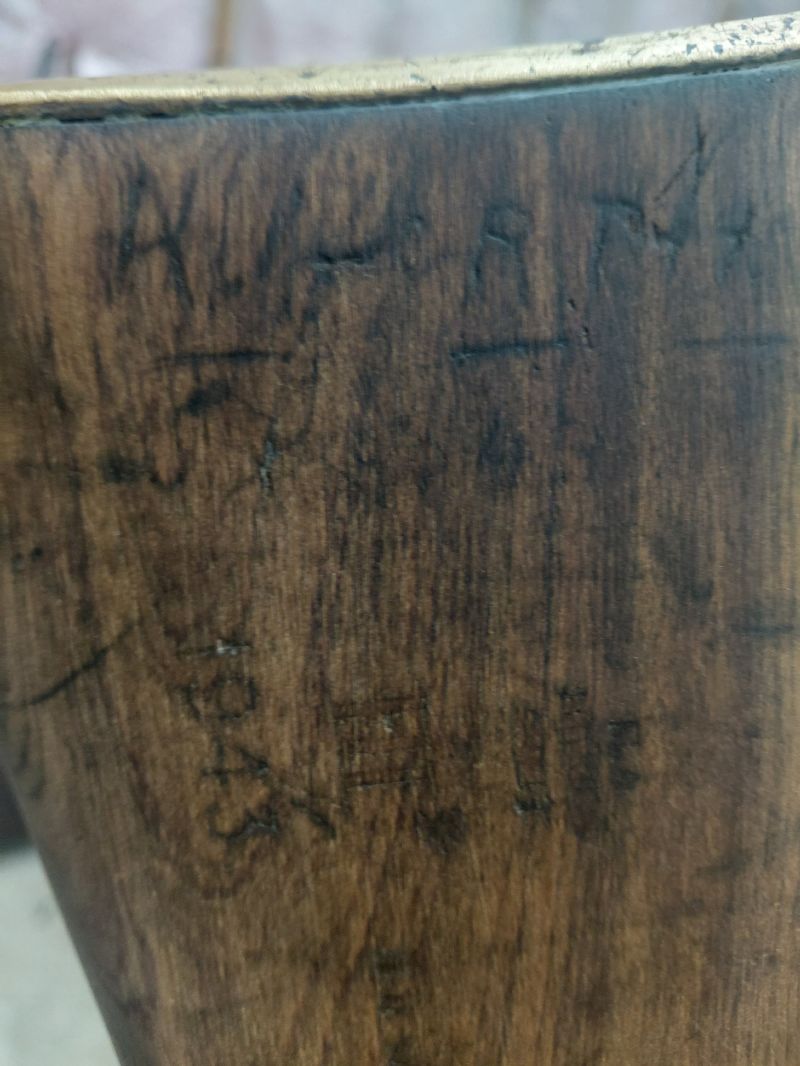

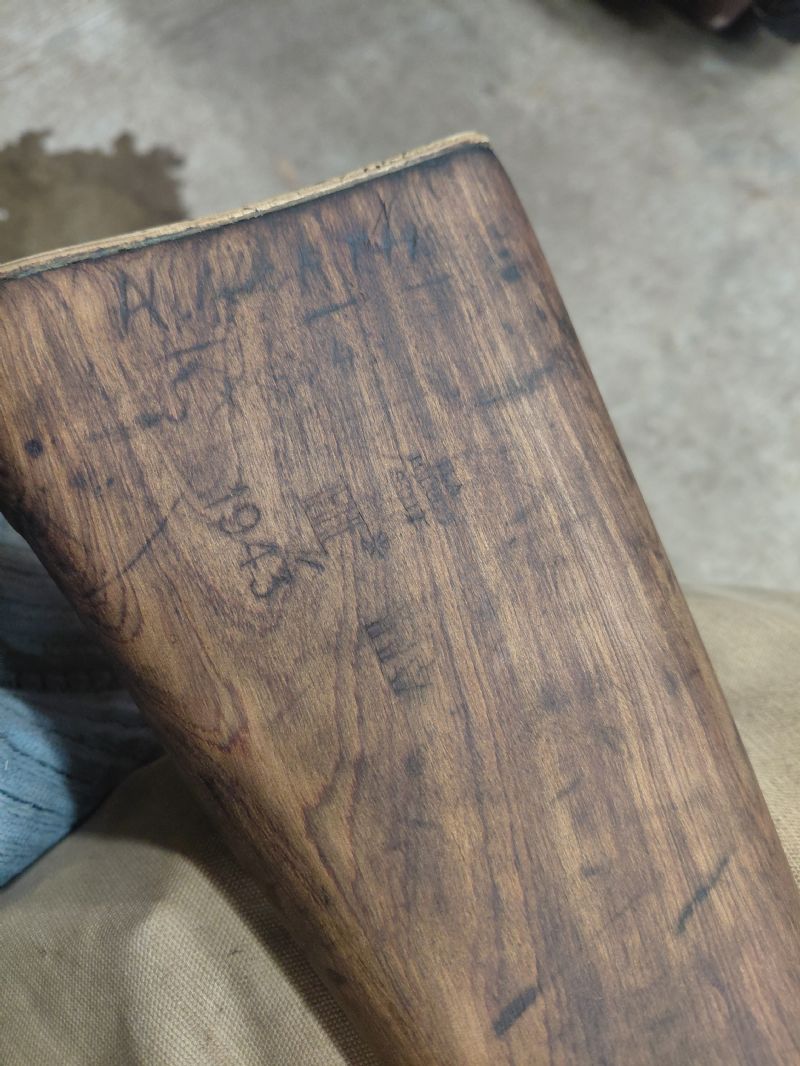

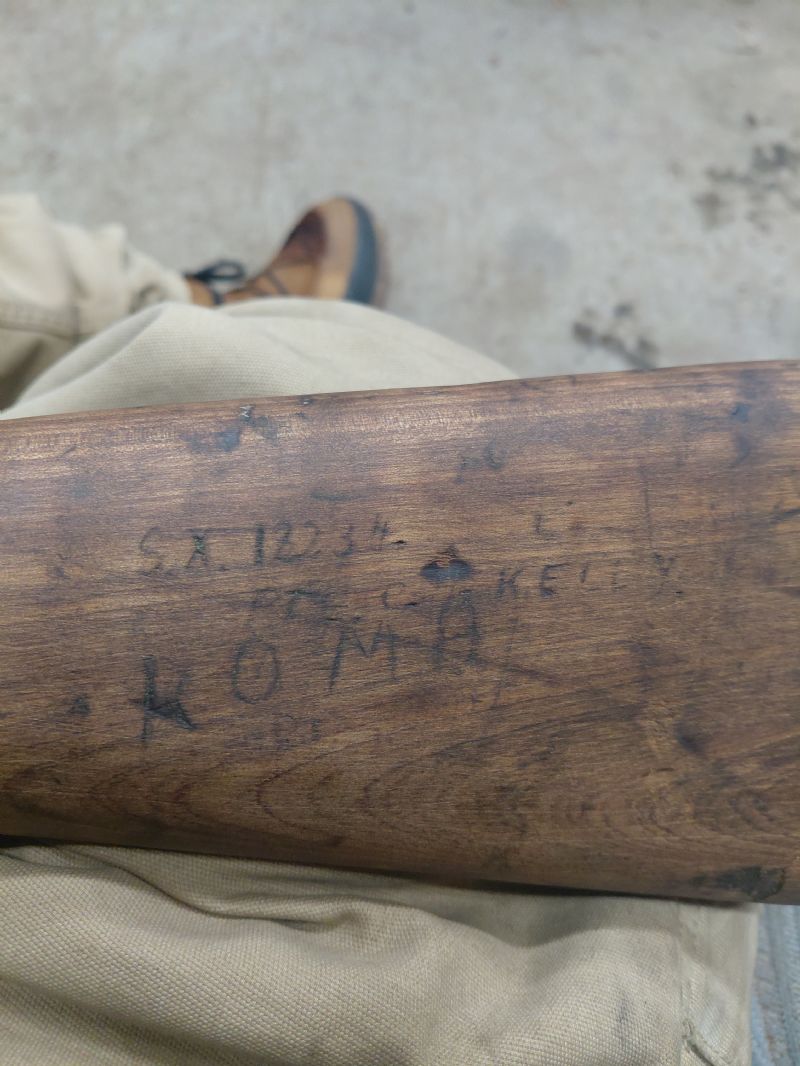

Cleaning up the old enfield stock.. shows some of it's history... :0)
Just kinda ..neet..

Not real pretty but solid n kinda cumphy... :0)

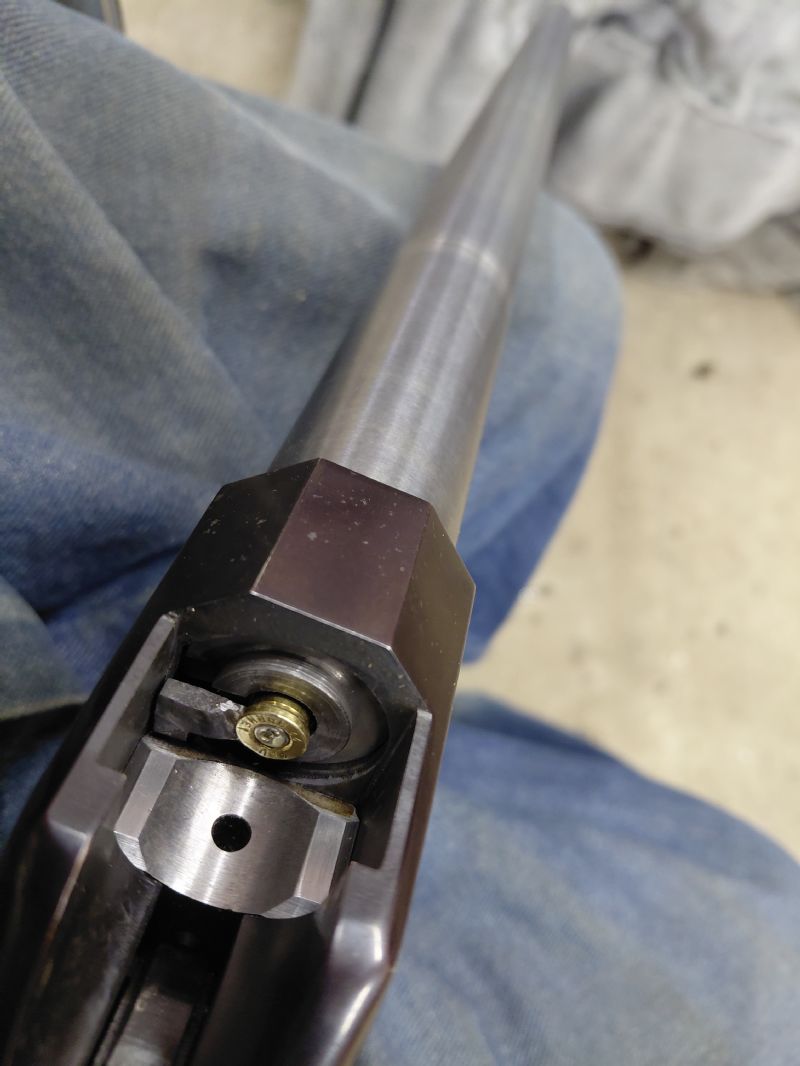

Extractor is in..n.. works.. :0)

Now the back story..

I only have the one extractor blank...n..the company is now defunked.. so no parts.. or skeematic drawings...

I took me best guess cutting the extractor..by eye..
Just missed... :0/

So..one of me Buds came by being a professional welder..
Showed me the ins n outs of gas welding..
( I had nevah done that before..)

Now I have ah little bit of knowledge on that prossess..
Worked very well.. n..he showed me other things that can be done with it.. :0)

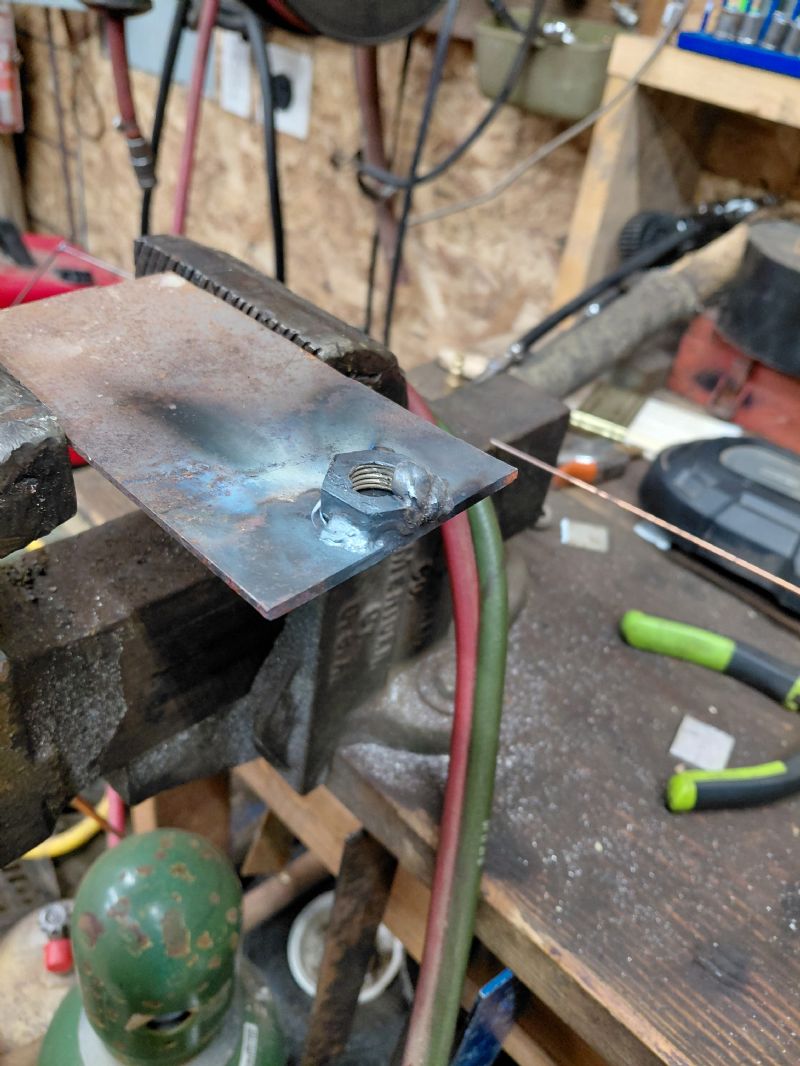

Practice... :0)

Al ...... looks like you ruined a perfectly good nut!

Keep working on it!

quote:

---

Originally posted by BanjoLink

Al ...... looks like you ruined a perfectly good nut!

Keep working on it!

---

It's ok...

I know how to fix it.. ;0)

quote:

---

Originally posted by STUD figmo Al

quote:

---

Originally posted by BanjoLink

Al ...... looks like you ruined a perfectly good nut!

Keep working on it!

---

It's ok...

I know how to fix it.. ;0)

---

...... or make another one!

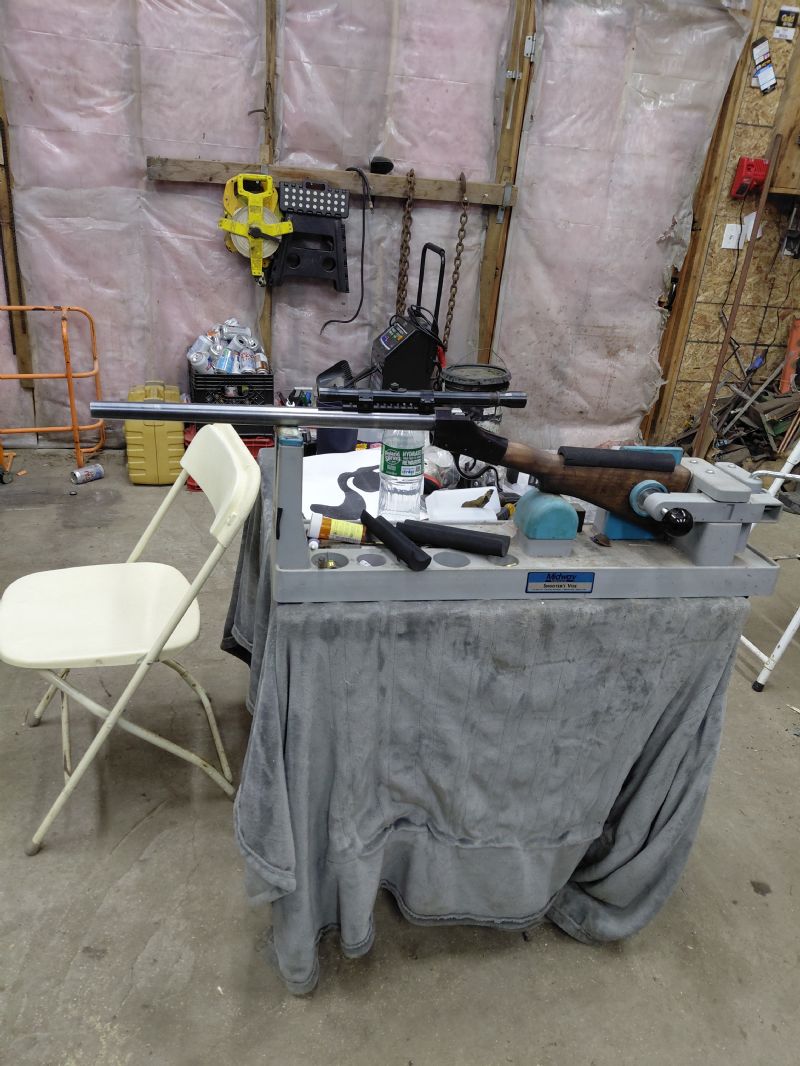

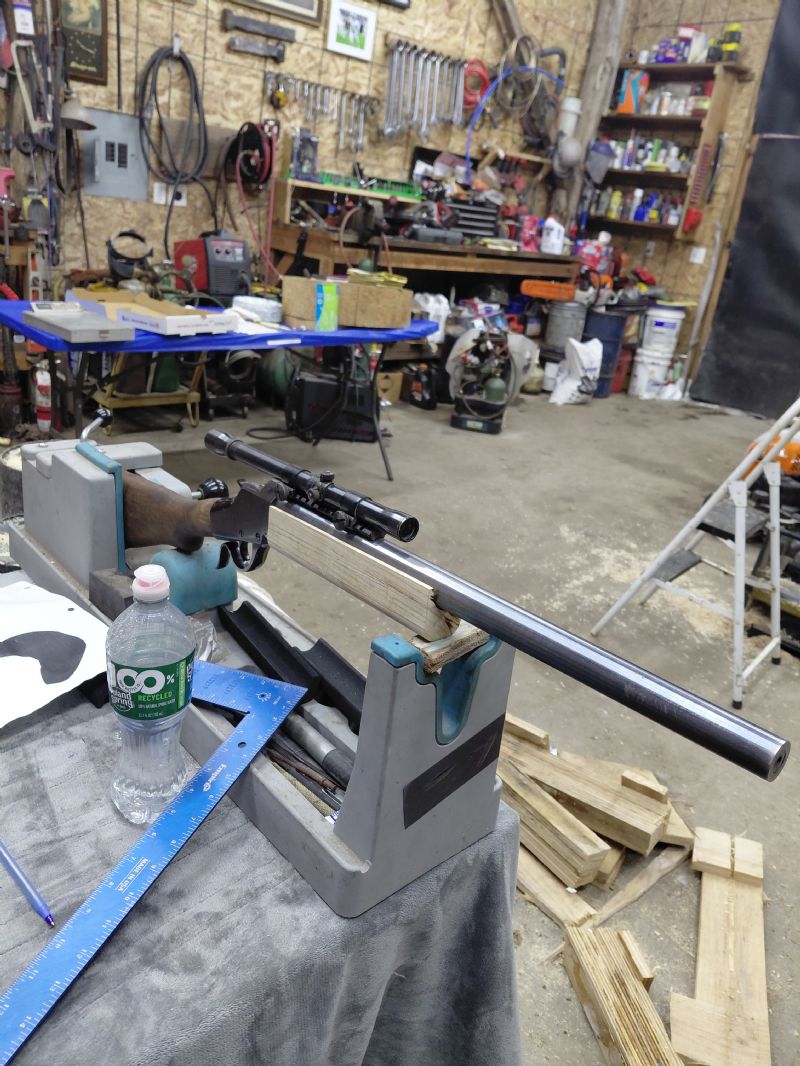

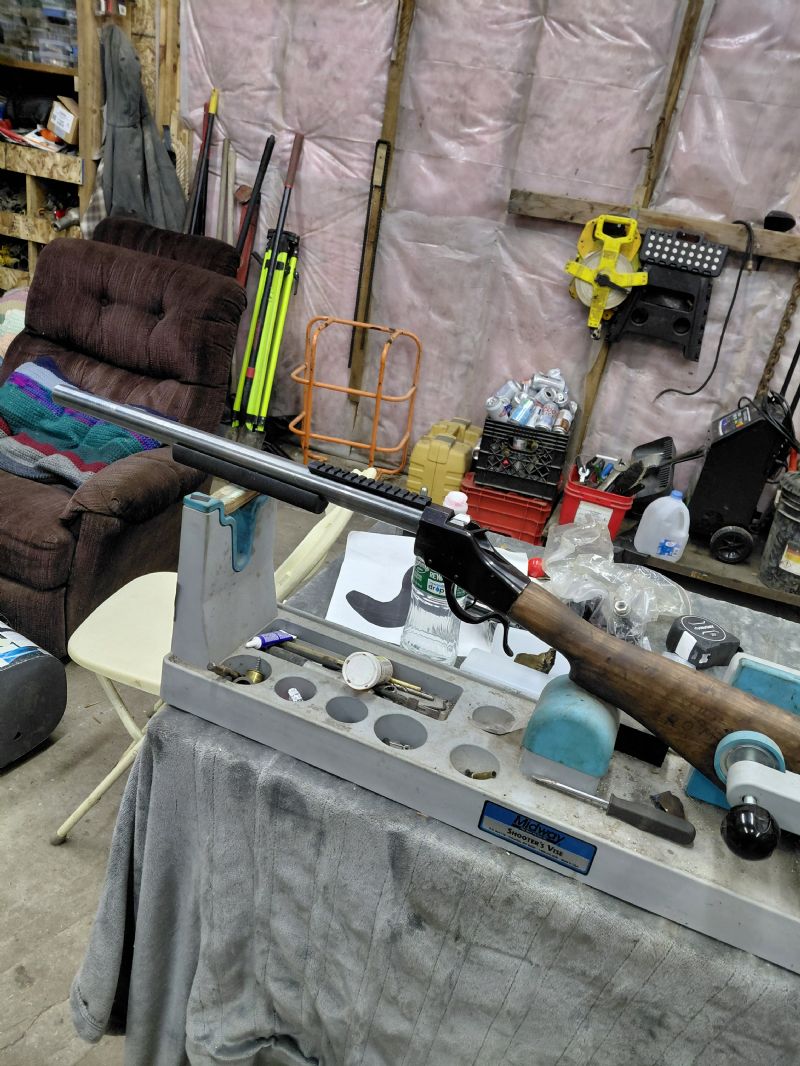

Fired up the wood stove in the barn..n..did the scope n mount work today..

Got this far today...

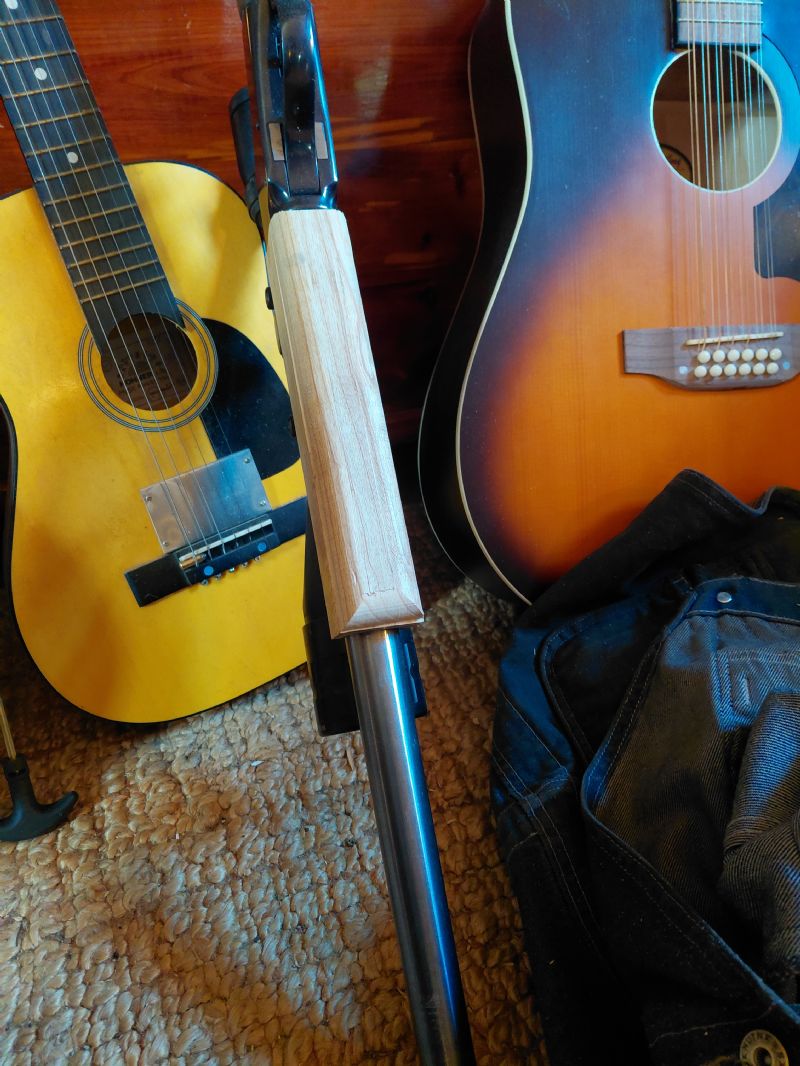

Forearm.. bout half done..

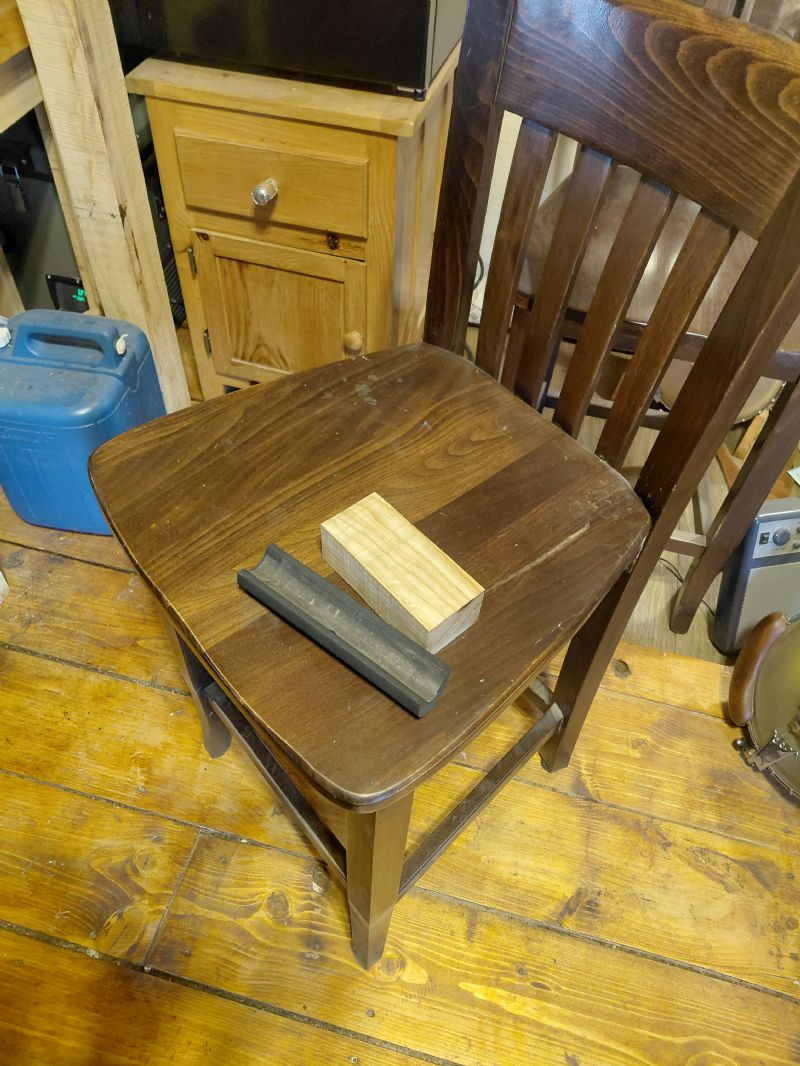

Forearm wood..
Taking on the looks of a casket...

Oops...

Made me way to the barn taday...
Not real nasty out...

Got the forearm attatched.n stained..

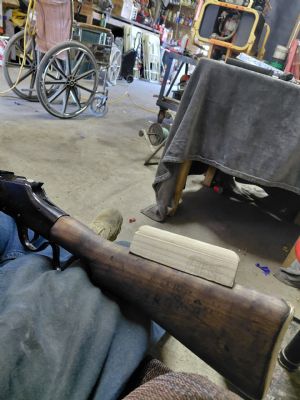

Got the template for the cheek riser too..

Just gotta tru oil it now..

Oops...

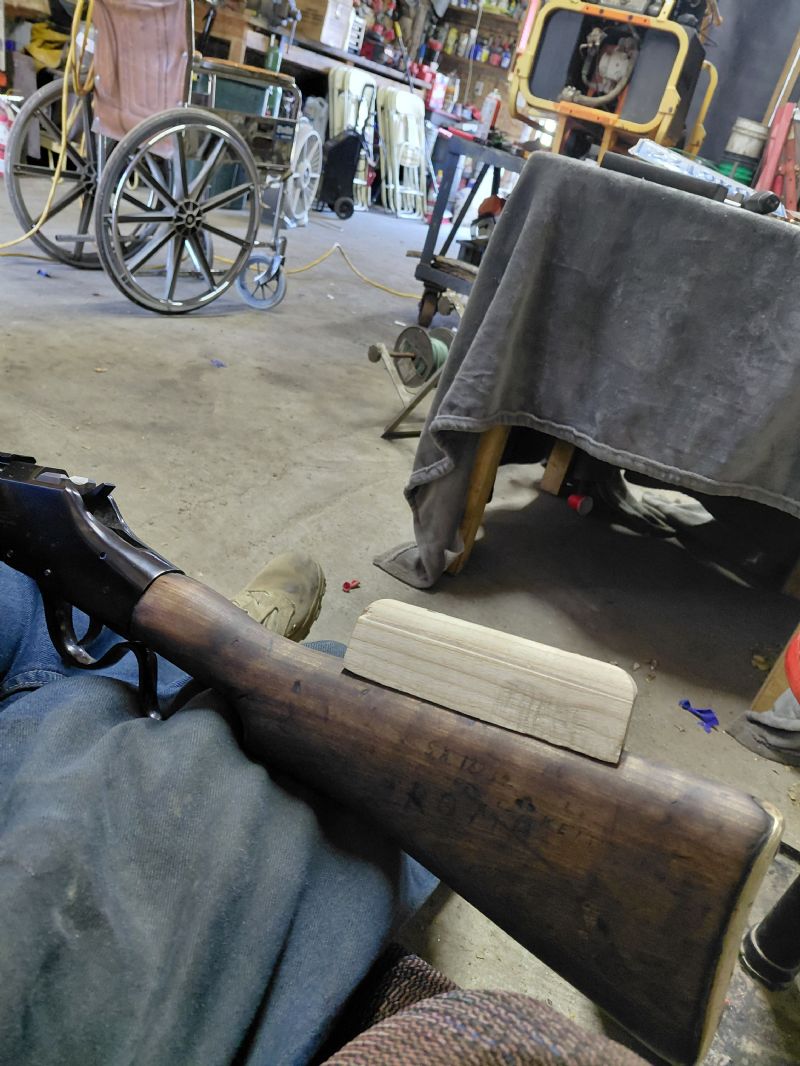

Cheek piece riser for scope...

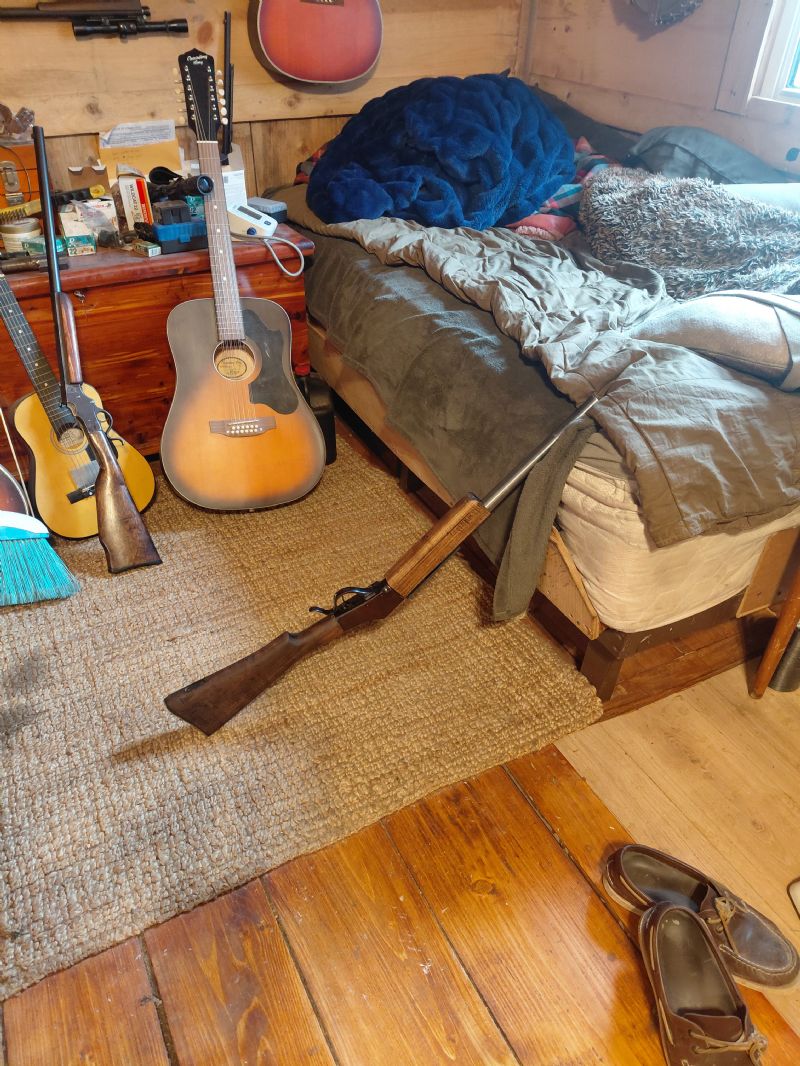

Well here it is in all it's glory...
The 6mm K hornet...
Made the resizing die today...
Wanna make a bullet seating die for it..to make the seating prossess better..
Shot it ..the rifle ..yesterday.. very happy with the results..75 gr bullet at 2500 fps..n a 55 grain at 2800..fps..the 55 gr was very accutate... :0)

That’s a pretty badass looking gun!!! Very unassuming looking, but bet it gets the job done well!!!
Slammer!!!
